Garage Plan 5

Name: Garage Plan 5
SKU: 6577
Availability: InStock

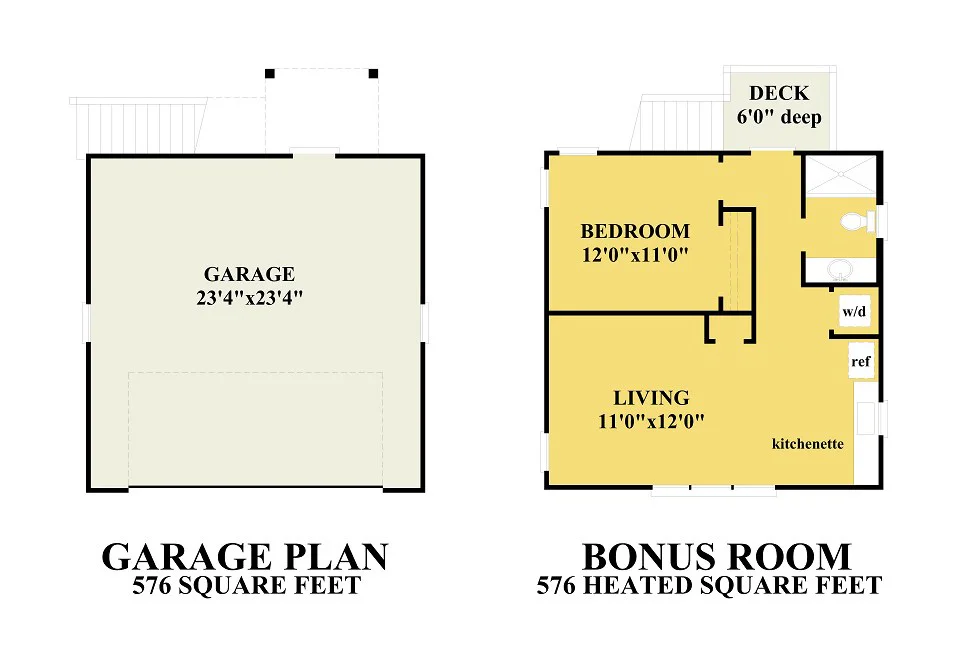

If you are needing a full apartment above the garage this plan offers that with a private rear stairs. You could call it a tiny house as this plan has a fully functioning kitchen, stacked washer and dryer and private bedroom with a closet. Use this for adult children, guest house, or even an extra source of income. The exterior can be modified to match your existing or proposed home.

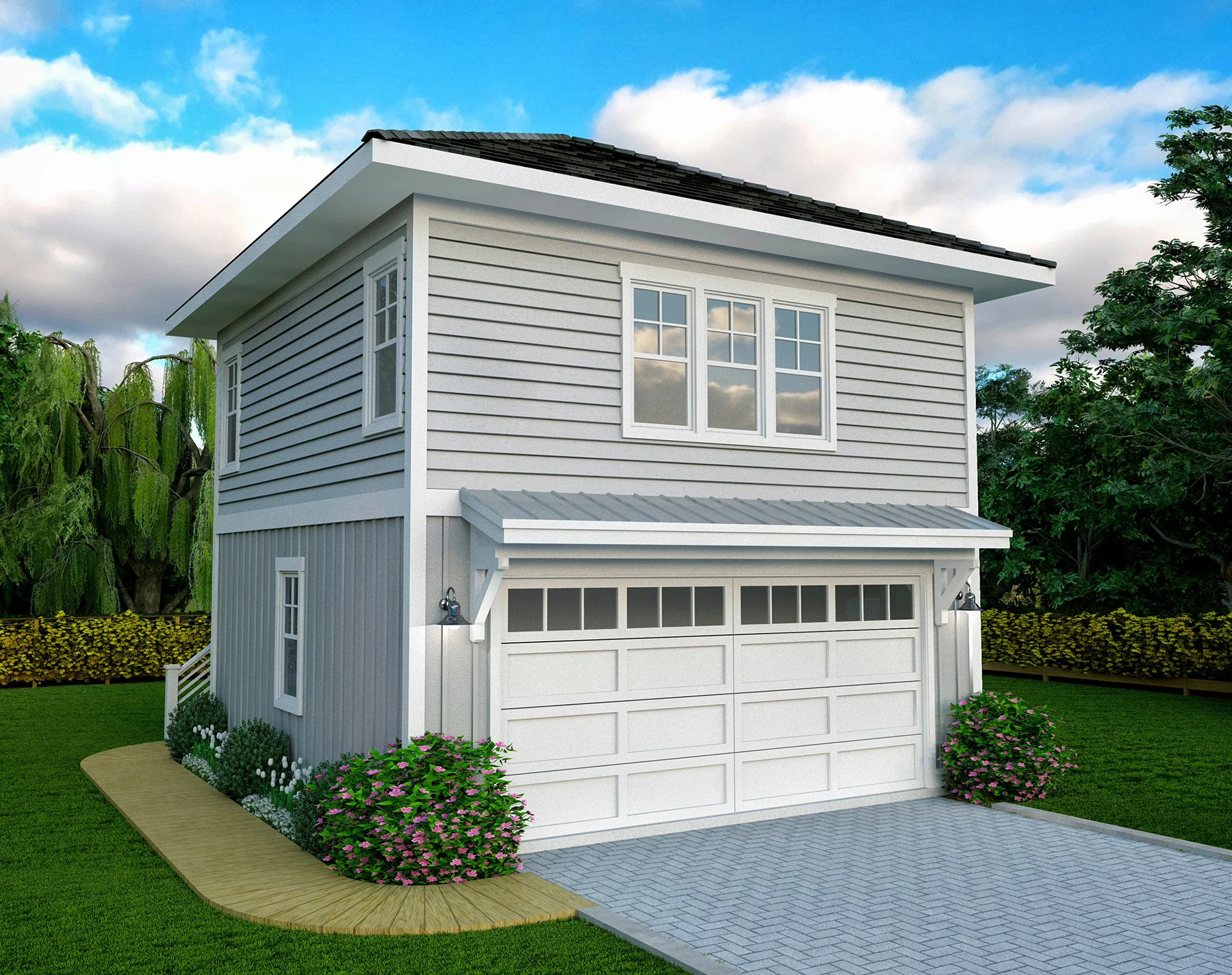

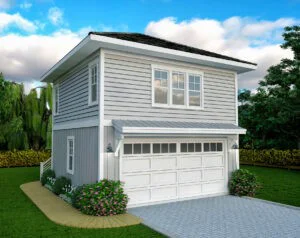

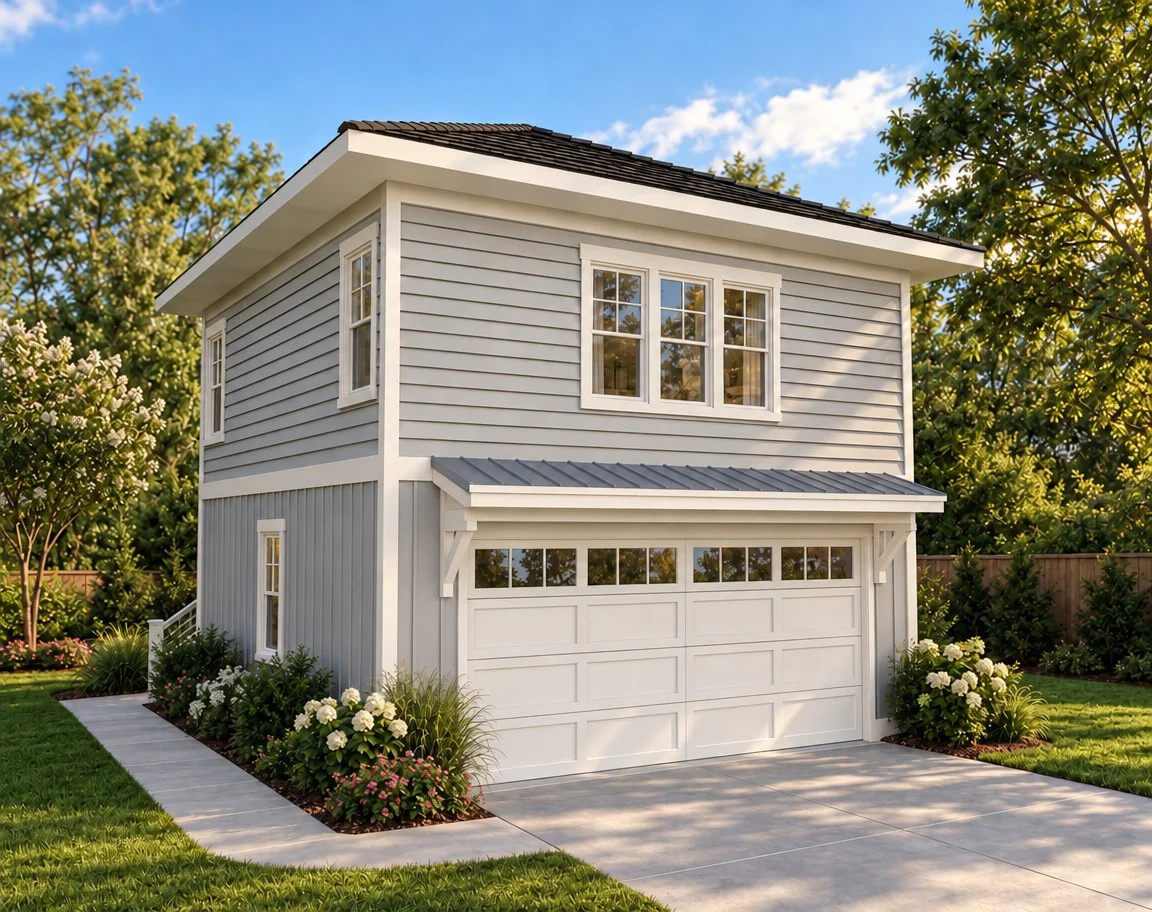

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Garage Plan 5 – One Study Copy PDF, No

$450.00

Garage Plan 5 – Electronic PDF, No

$750.00

Garage Plan 5 – Electronic PDF, Yes

$950.00

Garage Plan 5 – Electronic CAD, No

$1.000.00

Garage Plan 5 – Electronic CAD, Yes

$1.200.00

Delivery Format

One Study Copy PDF($450.00)
Electronic PDF($750.00)
Electronic CAD($1.000.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	576
Foot Print	23'4" x 23'4"
Stories	2
Bedrooms	1
Bathrooms	1
House Width	23'4"
House Depth	23'4"
Height, above ground floor slab	N/A
Foundation	Slab
Garage	Front Load
Master Suite on main floor	NO
His & Hers Closets	NO
Walk In Pantry	NO
Office/Study	NO
Elevator	NO
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
