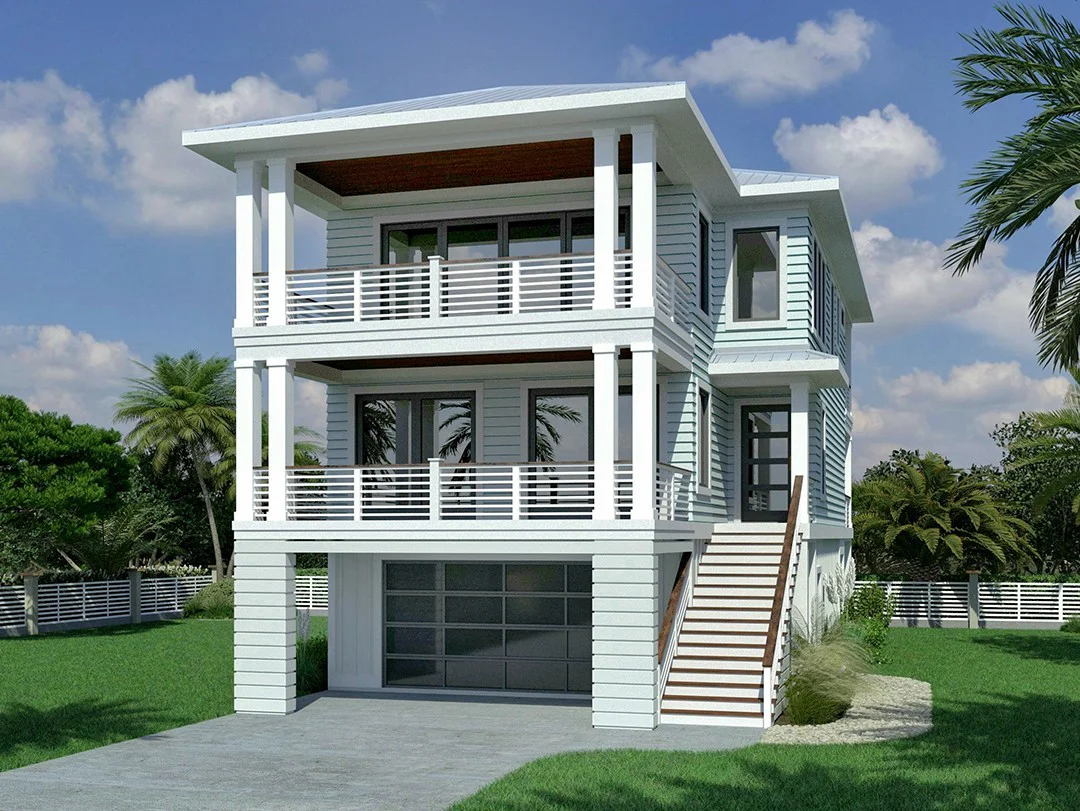

Oak Harbor

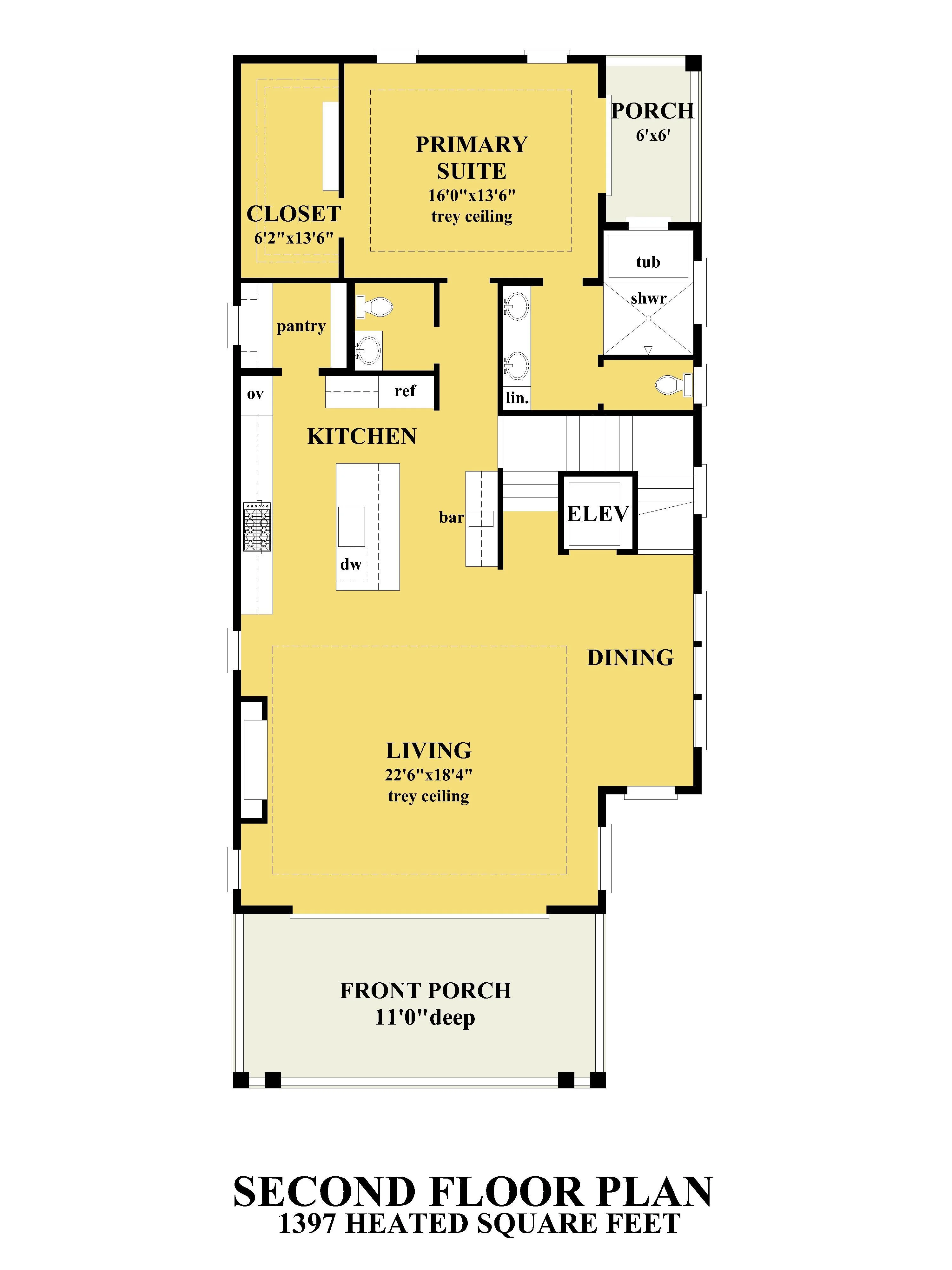

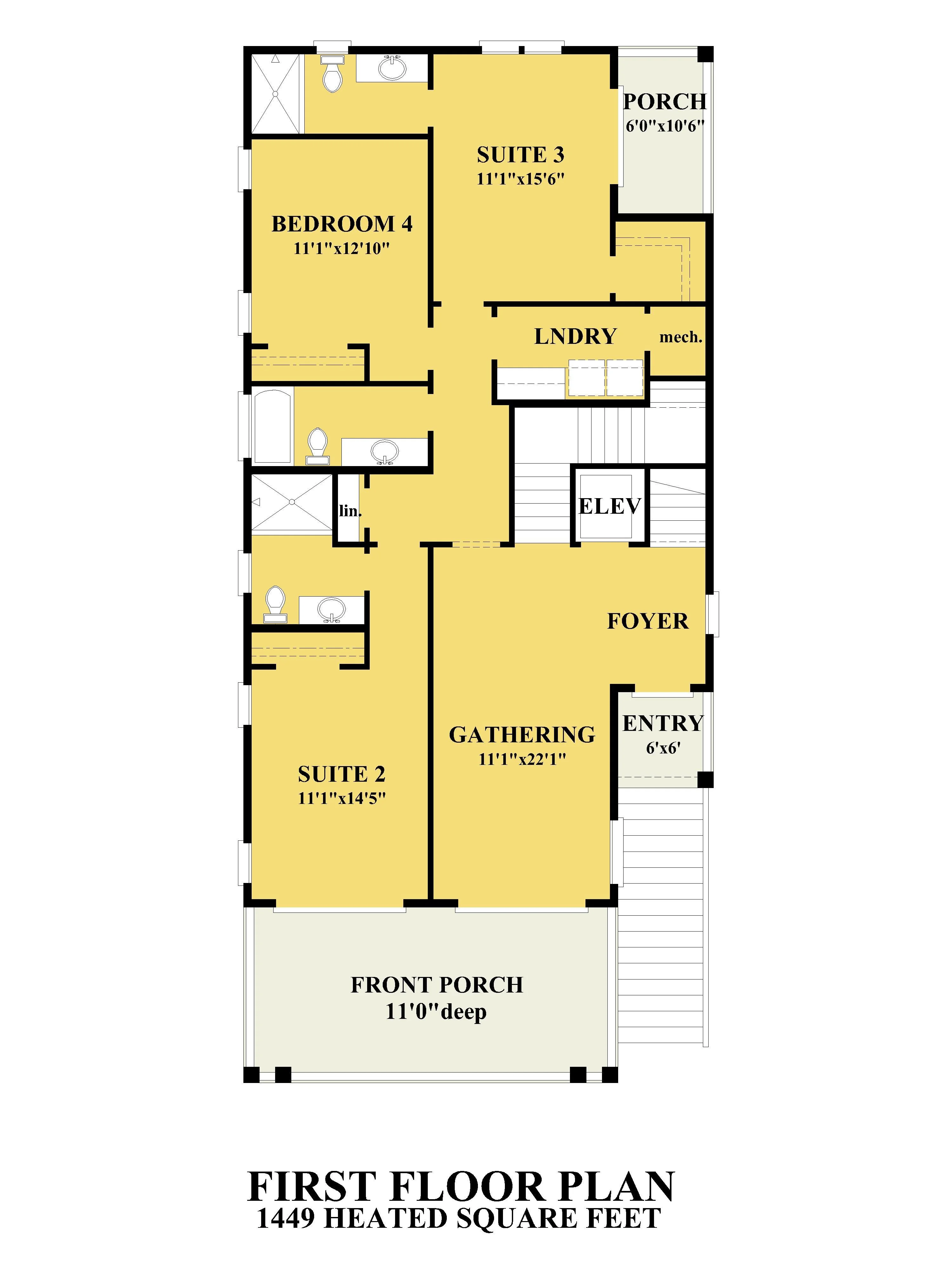

With it’s reverse plan design and narrow footprint Oak Harbor provides great view opportunities from the top floor. Also on the top floor is the primary suite that features a wet room bath, large walk in closet and private porch. The first floor provides three additional bedrooms and a large gathering room off the foyer.

Oak Harbor by SDC House Plans on Sketchfab

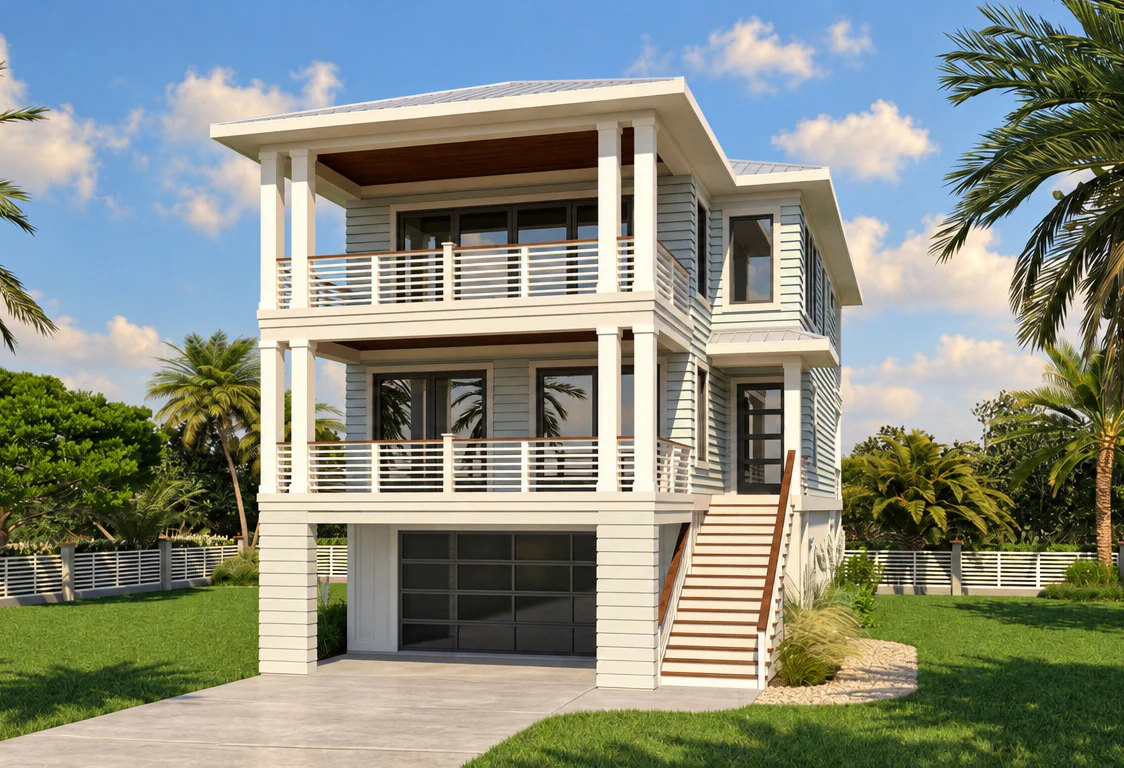

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.
Click here to create an account and save this plan.

Delivery Format

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.
Add to wishlist
House Plan Specifications
SQ FT

3086
Foot Print

29’6” x 65’0”
Stories

3
Bedrooms

4
Bathrooms

4.5
Ground Floor Ceiling Height

9'
First Floor Ceiling Height

9'
Second Floor Ceiling Height

10'
House Width

29' 6"
House Depth

65' 0"
Height, above ground floor slab

38’-5”

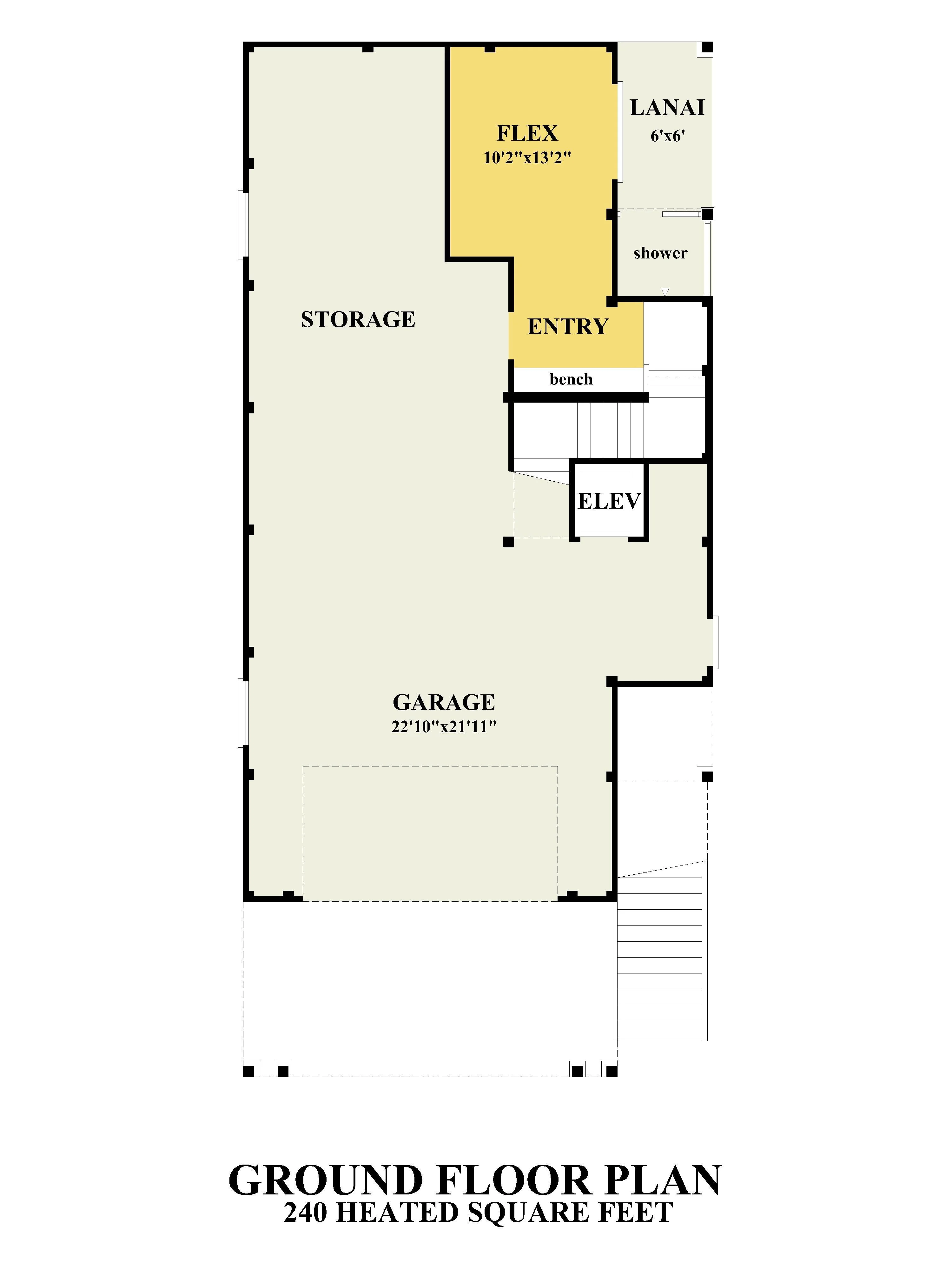

Foundation

Pilings
Garage

Under
Exterior Wall Thickness

2×6
Master Suite on main floor YES
His & Hers Closets NO
Walk In Pantry YES
Office/Study NO
Elevator YES
FROG/Bonus Room NO
Reverse Floor Plan YES
Butler's Pantry NO
Media Rooms NO
Exercise Room NO
Wet Bar YES
