Water Street

Name: Water Street
SKU: 3163
Availability: InStock

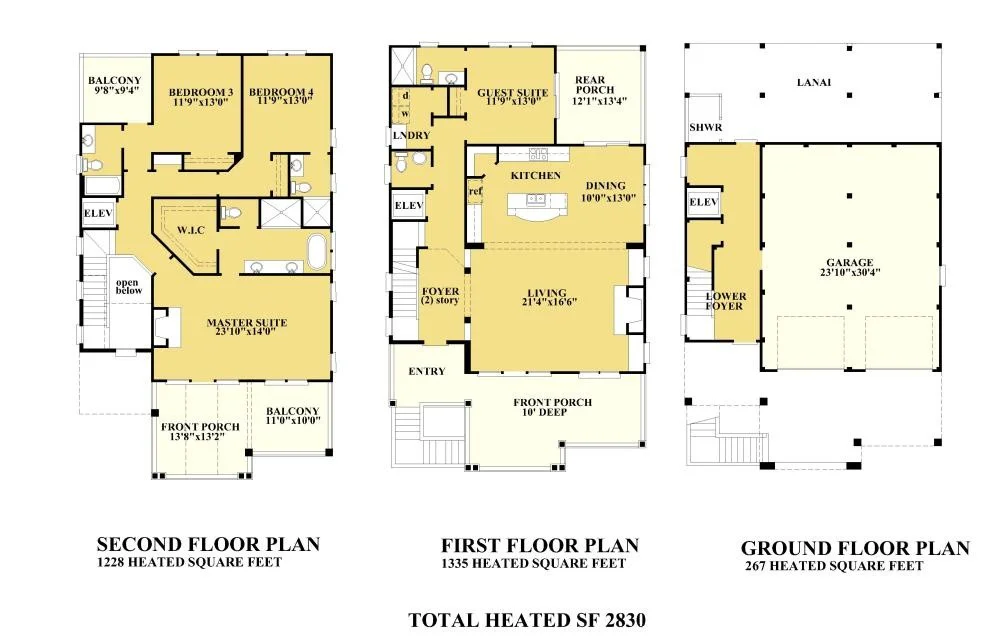

This floor plan takes advantage of views out the front. Large open floor plan on the main living floor with guest suite. Enjoy the view from the very large master suite complete with fireplace and private and balcony.

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Delivery Format

One Study Copy PDF($500.00)
Electronic PDF($1.750.00)
Electronic CAD($2.350.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	2830
Foot Print	34'-2" x 57'-6"
Stories	3
Bedrooms	4
Bathrooms	4.5
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	9'
House Width	34' 2"
House Depth	57' 6"
Height, above ground floor slab	38' 6"
Foundation	Pilings
Garage	Under
Exterior Wall Thickness	2×4
Master Suite on main floor	NO
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	NO
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
