Bay Island 3

Name: Bay Island 3
SKU: 5261
Availability: InStock

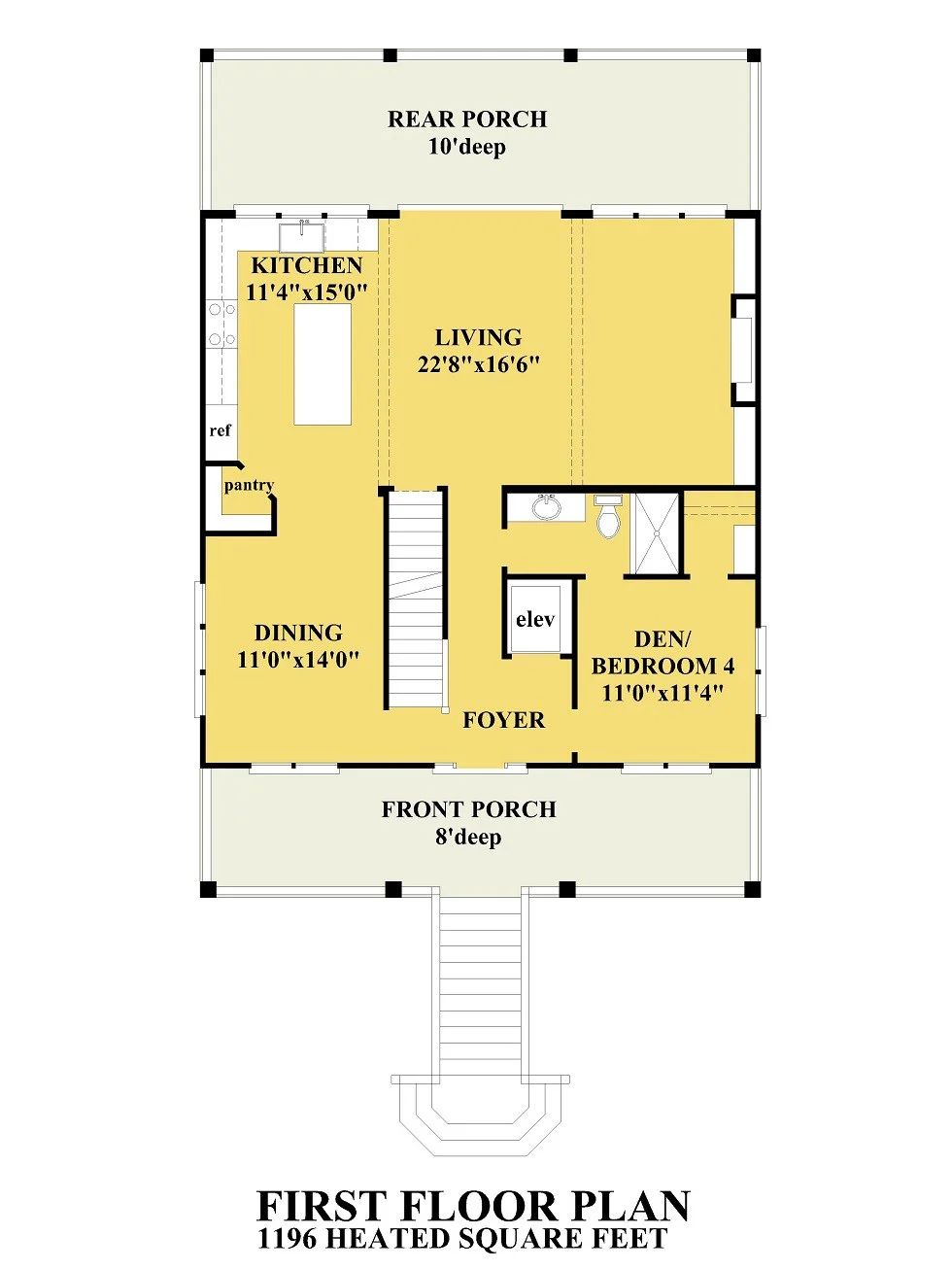

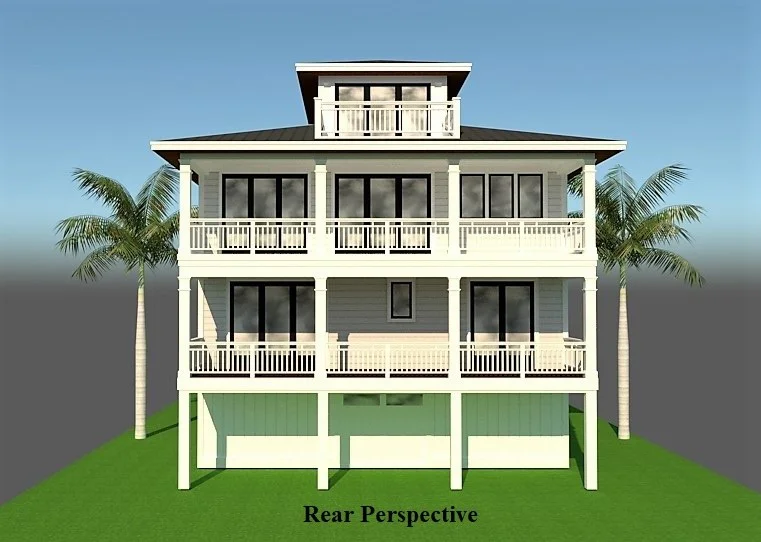

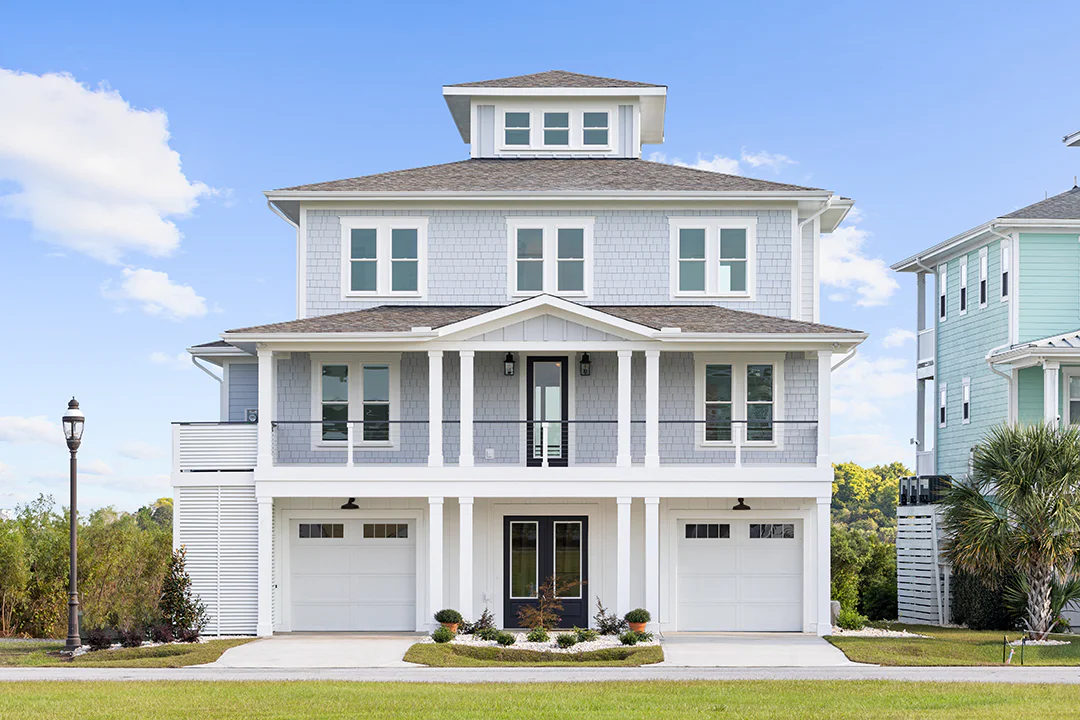

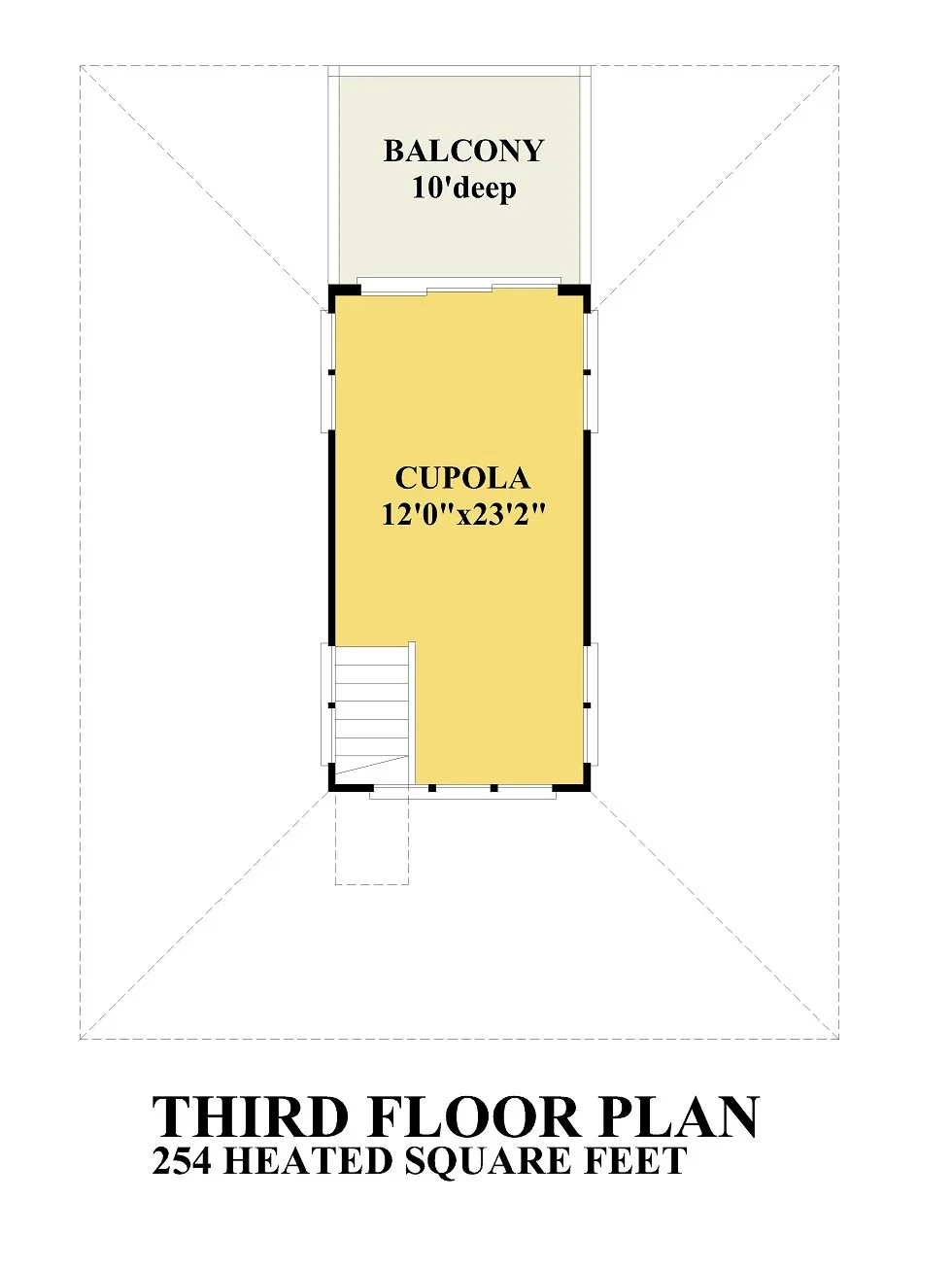

The main difference our Bay Island 3 offers is the main living on the first floor. The open and view oriented plan has ample outdoor living space and features a Coastal Contemporary exterior. The cupola, and its balcony is easily accessed and can provide for amazing views.

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Bay Island 3 – One Study Copy PDF, No

$500.00

Bay Island 3 – Electronic PDF, No

$1.750.00

Bay Island 3 – Electronic PDF, Yes

$1.950.00

Bay Island 3 – Electronic CAD, No

$2.350.00

Bay Island 3 – Electronic CAD, Yes

$2.550.00

Delivery Format

One Study Copy PDF($500.00)
Electronic PDF($1.750.00)
Electronic CAD($2.350.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	2589
Foot Print	34’-8” x 52’-6” (w/o stair)
Stories	4
Bedrooms	4
Bathrooms	3
House Width	34' 8"
House Depth	52' 6"
Height, above ground floor slab	39' 11"
Foundation	Pilings

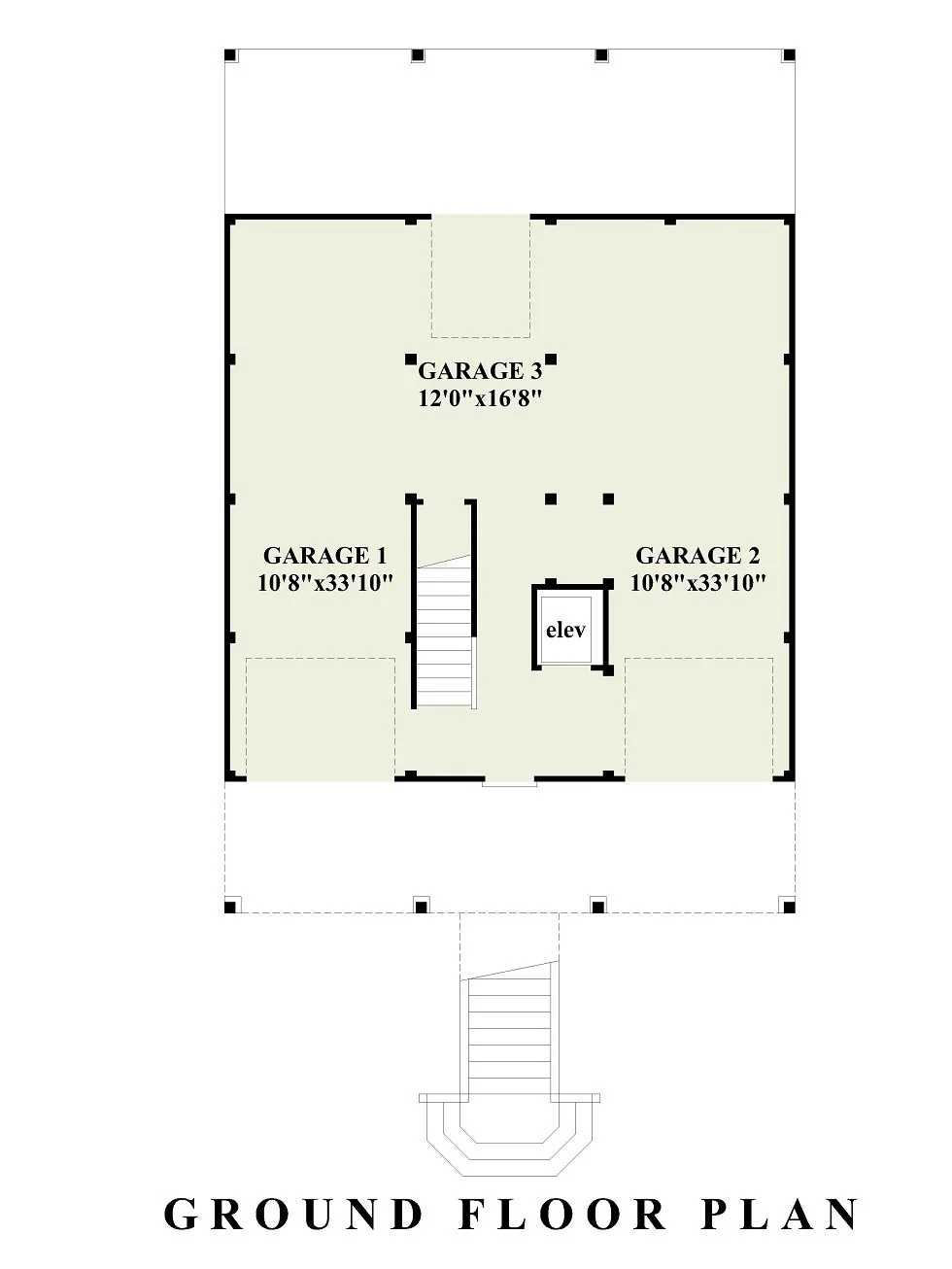

Garage	Under
Master Suite on main floor	NO
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	YES
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
