Boca Bay

Name: Boca Bay
SKU: 1070
Availability: InStock

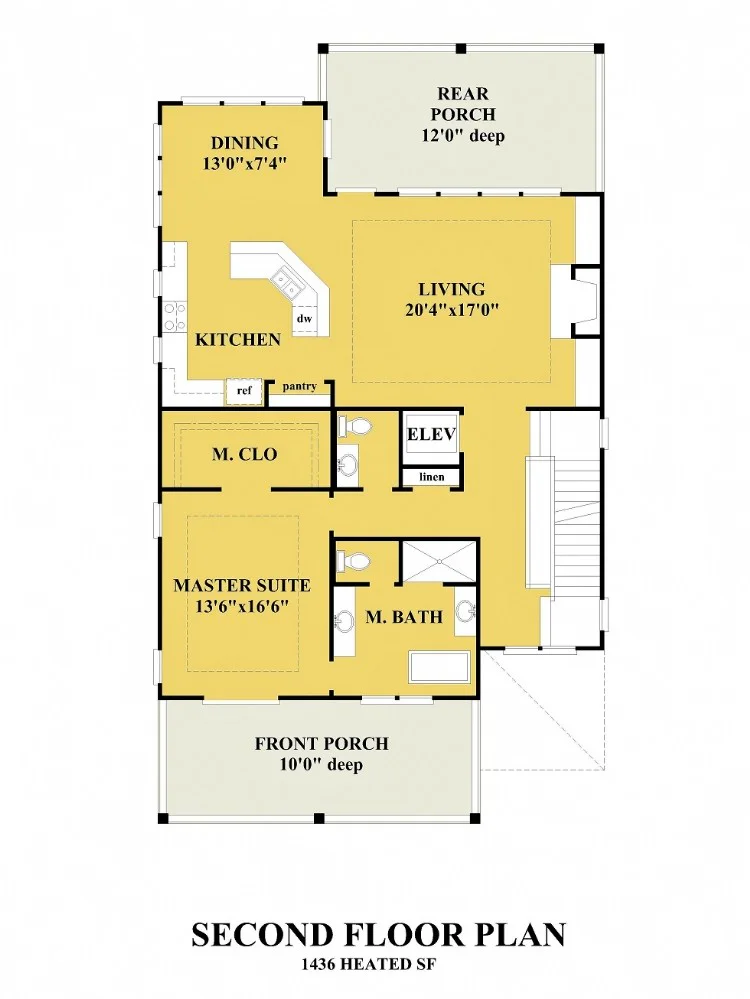

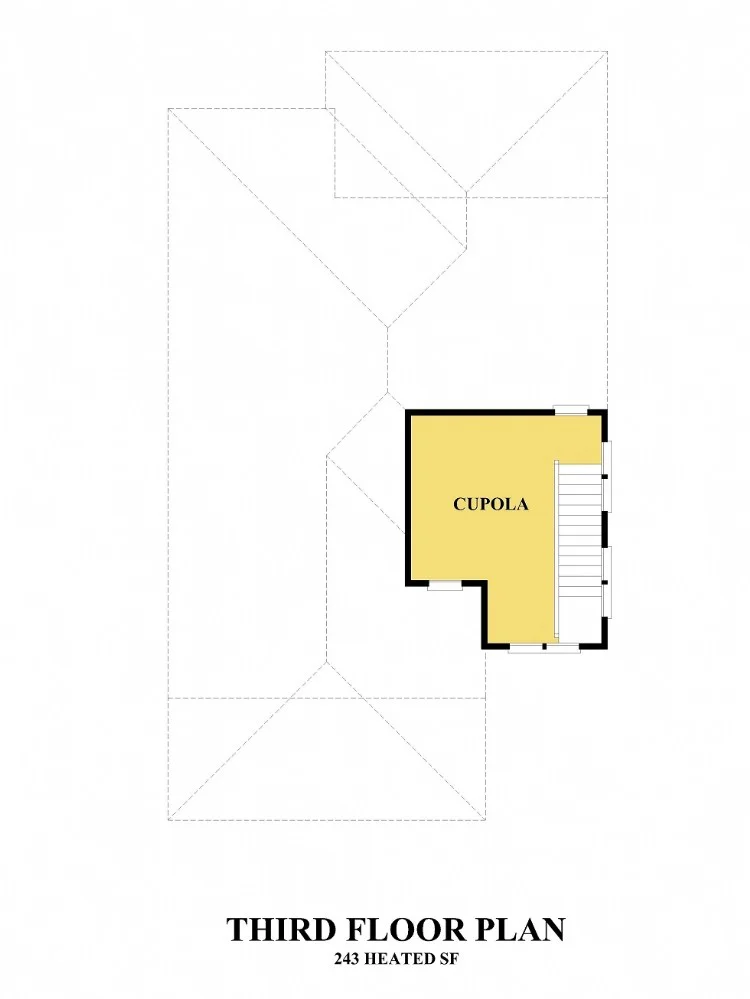

Designed to capture water views Boca Bay features a reverse living open plan with front and rear porches and a cupola level that can be a home office.

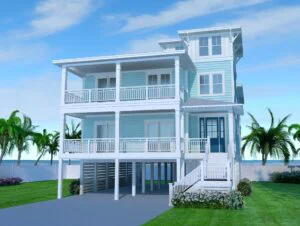

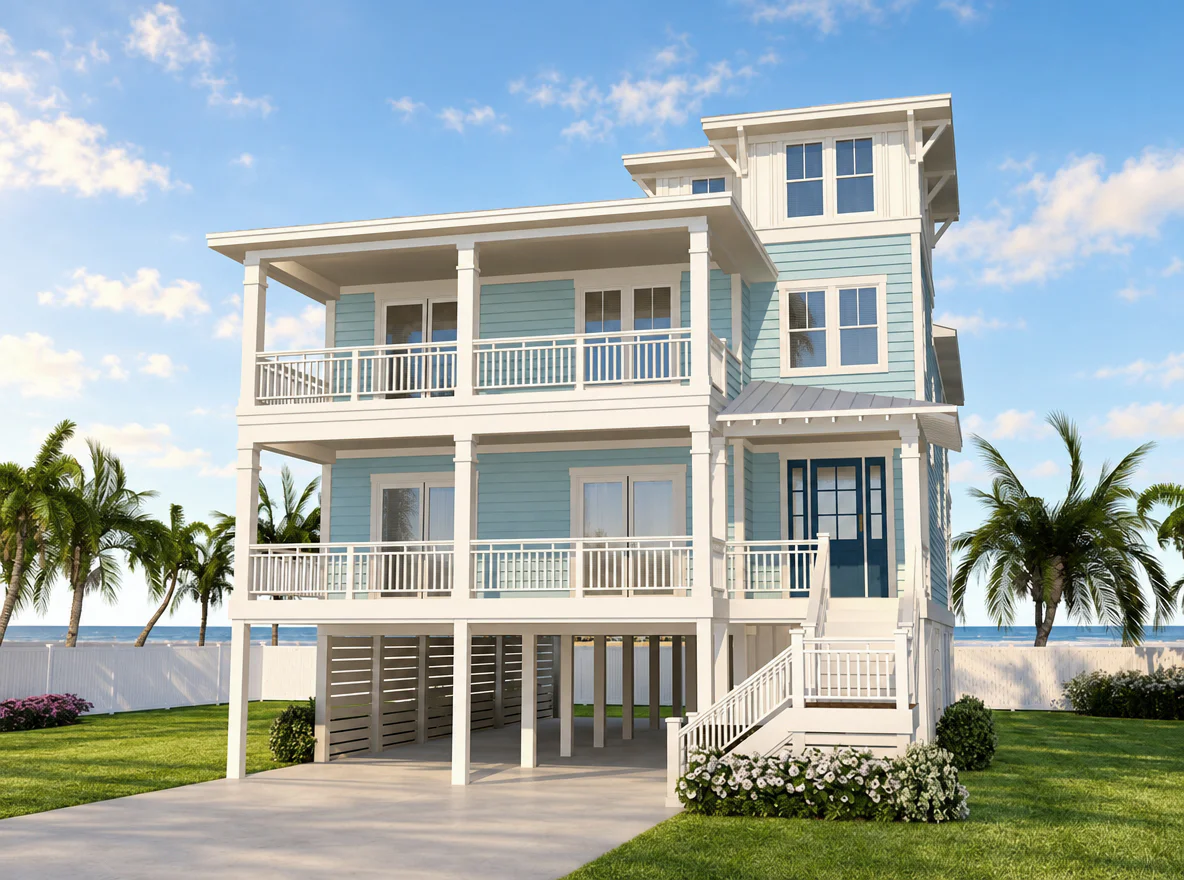

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Boca Bay – One Study Copy PDF, No

$500.00

Boca Bay – Electronic PDF, No

$1.750.00

Boca Bay – Electronic PDF, Yes

$1.950.00

Boca Bay – Electronic CAD, No

$2.350.00

Boca Bay – Electronic CAD, Yes

$2.550.00

Delivery Format

One Study Copy PDF($500.00)
Electronic PDF($1.750.00)
Electronic CAD($2.350.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	3215
Foot Print	36'-0" x 63'-0"
Stories	4
Bedrooms	4
Bathrooms	3.5
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	9'
Third Floor Ceiling Height	8'6"
House Width	36' 0"
House Depth	63' 0"
Height, above ground floor slab	41' 6"
Foundation	Pilings
Garage	Under
Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	NO
Office/Study	NO
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	YES
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
