Bartlett Bay

Name: Bartlett Bay
SKU: 11073
Availability: InStock

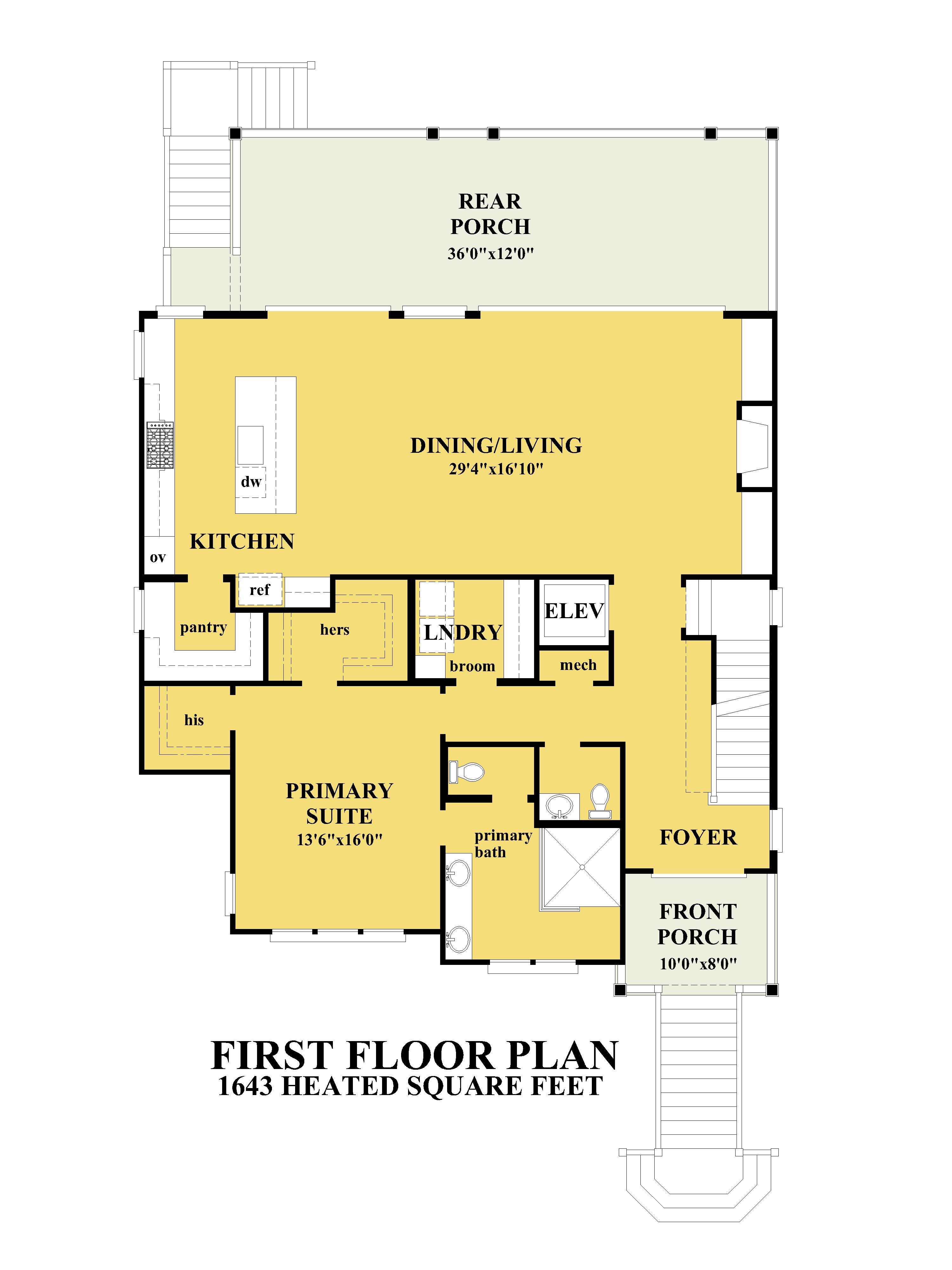

Bartlett Bay is a spacious plan, beautifully balancing communal and private spaces. At its heart is a spacious dining and living area, perfect for gatherings and relaxation. The adjacent kitchen is well-equipped, featuring a convenient pantry and room for a refrigerator, catering to culinary enthusiasts. The primary suite is a private oasis, complete with an ample bedroom, luxurious bath, and separate his and hers walk-in closets. Outdoor living is enhanced by two welcoming porches. Additional thoughtful touches include a practical laundry room and storage spaces, all designed for comfortable living.

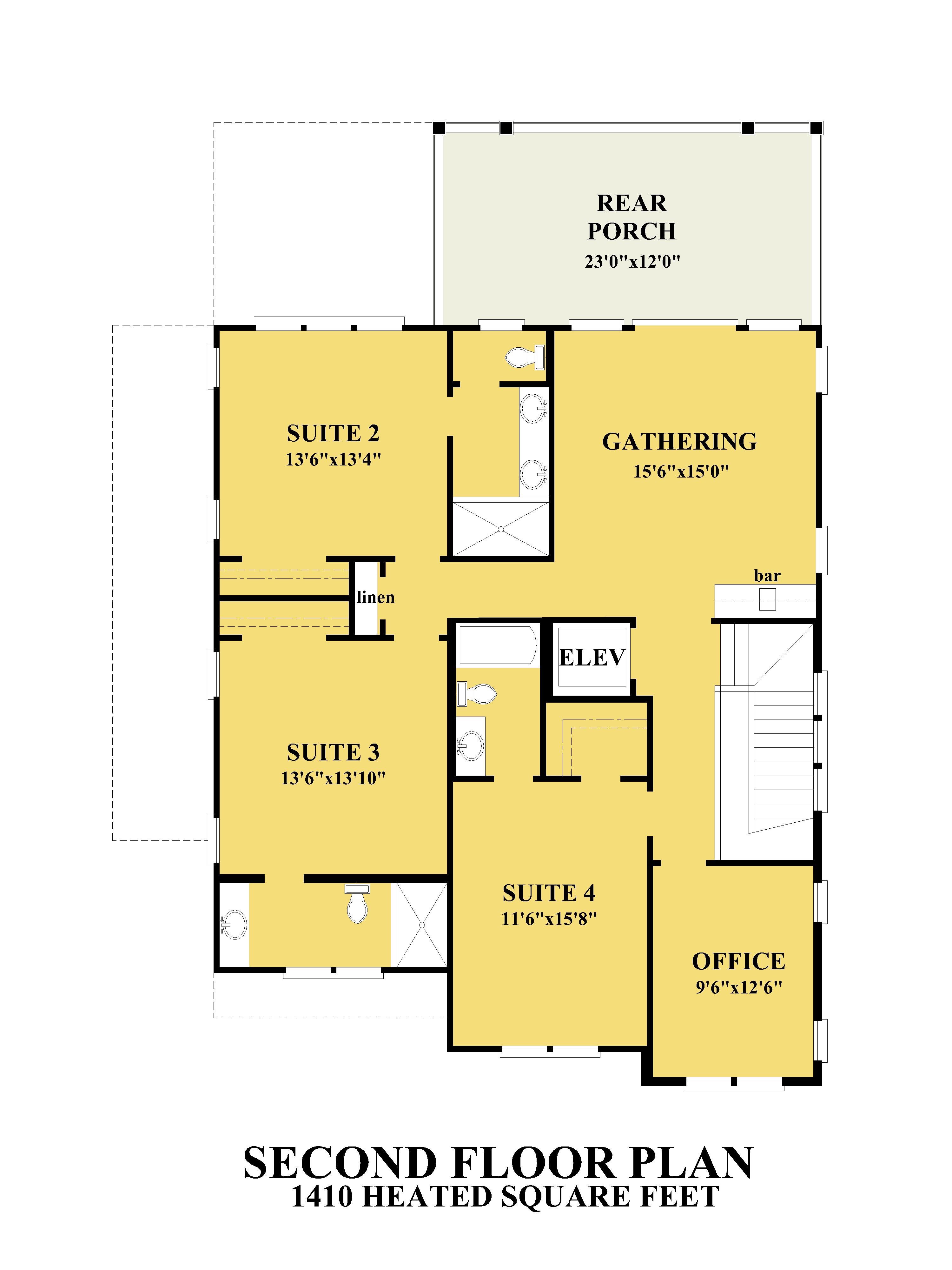

The second-floor offers three private suites, each with its own bathroom, providing ample privacy for family members or guests. The large gathering area, serves as a perfect spot for socializing and relaxation. Additionally, there is a dedicated office space, ideal for work or study, along with a rear porch that extends the outdoor living space. The presence of an elevator enhances accessibility across floors, making the home more convenient for everyone. Overall, this layout combines privacy, functionality, and outdoor connectivity to create a well-rounded living space.

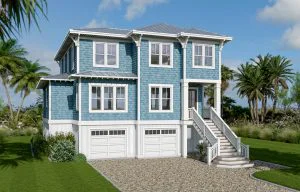

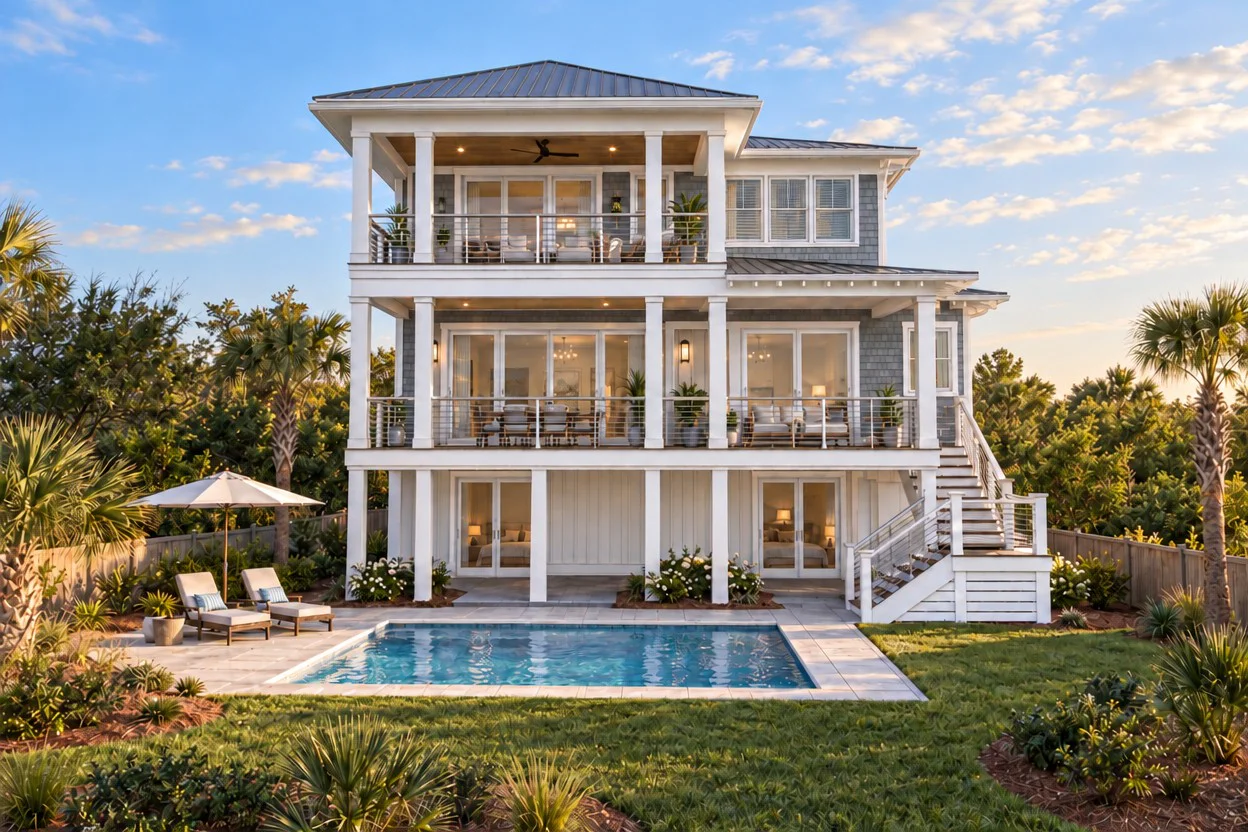

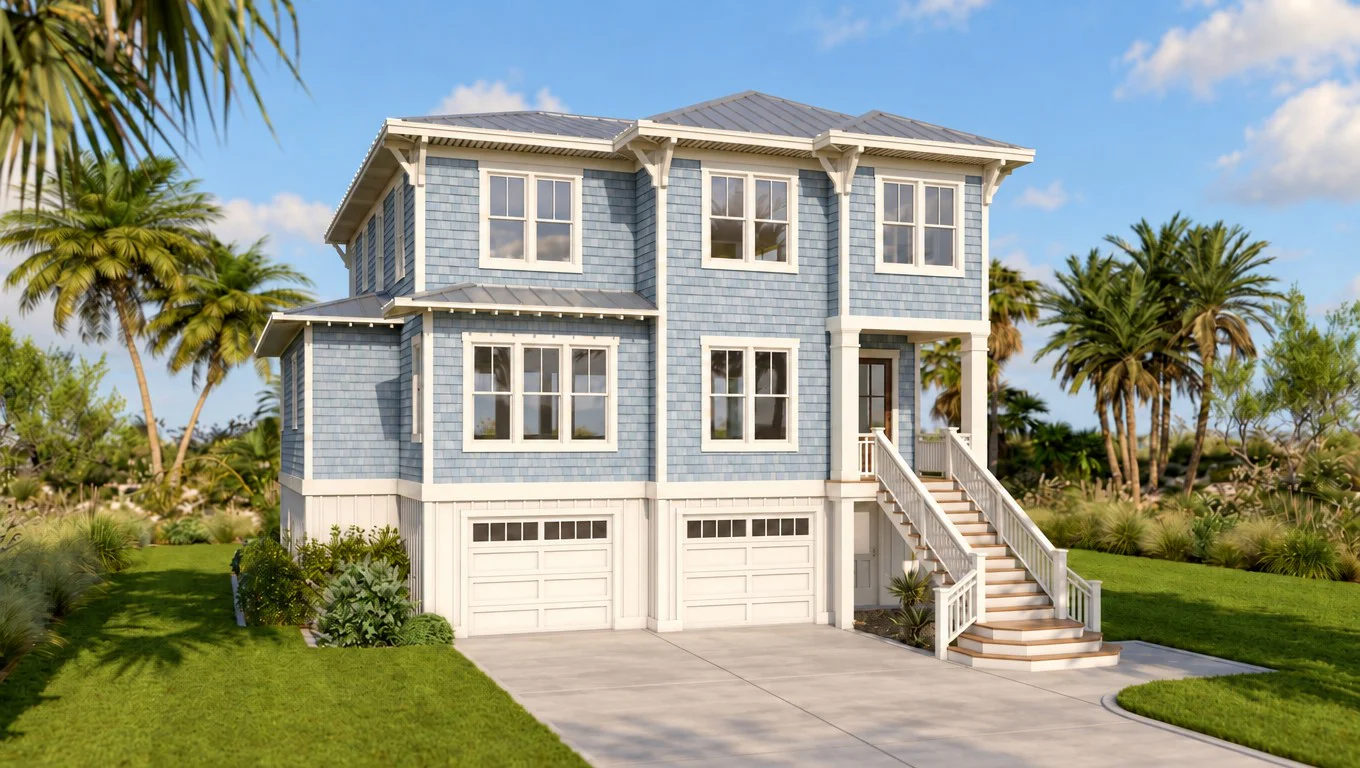

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Bartlett Bay – One Study Copy PDF, No

$600.00

Bartlett Bay – Electronic PDF, No

$2.100.00

Bartlett Bay – Electronic PDF, Yes

$2.300.00

Bartlett Bay – Electronic CAD, No

$2.820.00

Bartlett Bay – Electronic CAD, Yes

$3.020.00

Delivery Format

One Study Copy PDF ($600.00)
Electronic PDF ($2.100.00)
Electronic CAD ($2.820.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	3053
Foot Print	42’0” x 57’0”
Stories	3
Bedrooms	4
Bathrooms	4.5
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	42' 0"
House Depth	57' 0"
Height	37'0"
Foundation	Pilings

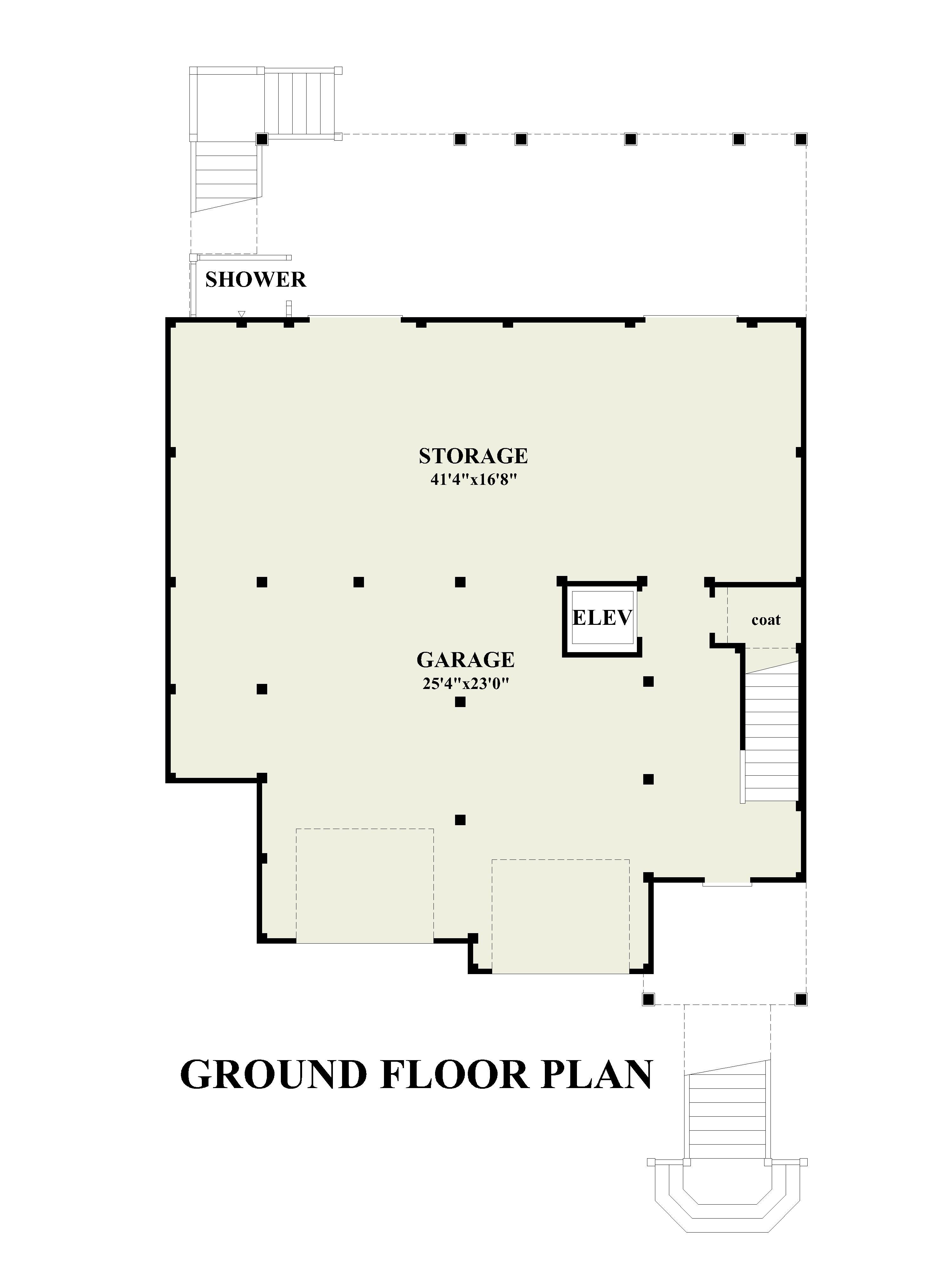

Garage	Under

Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	YES
Walk In Pantry	YES
Office/Study	YES
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
