Bay Point

Name: Bay Point
SKU: 10994
Availability: InStock

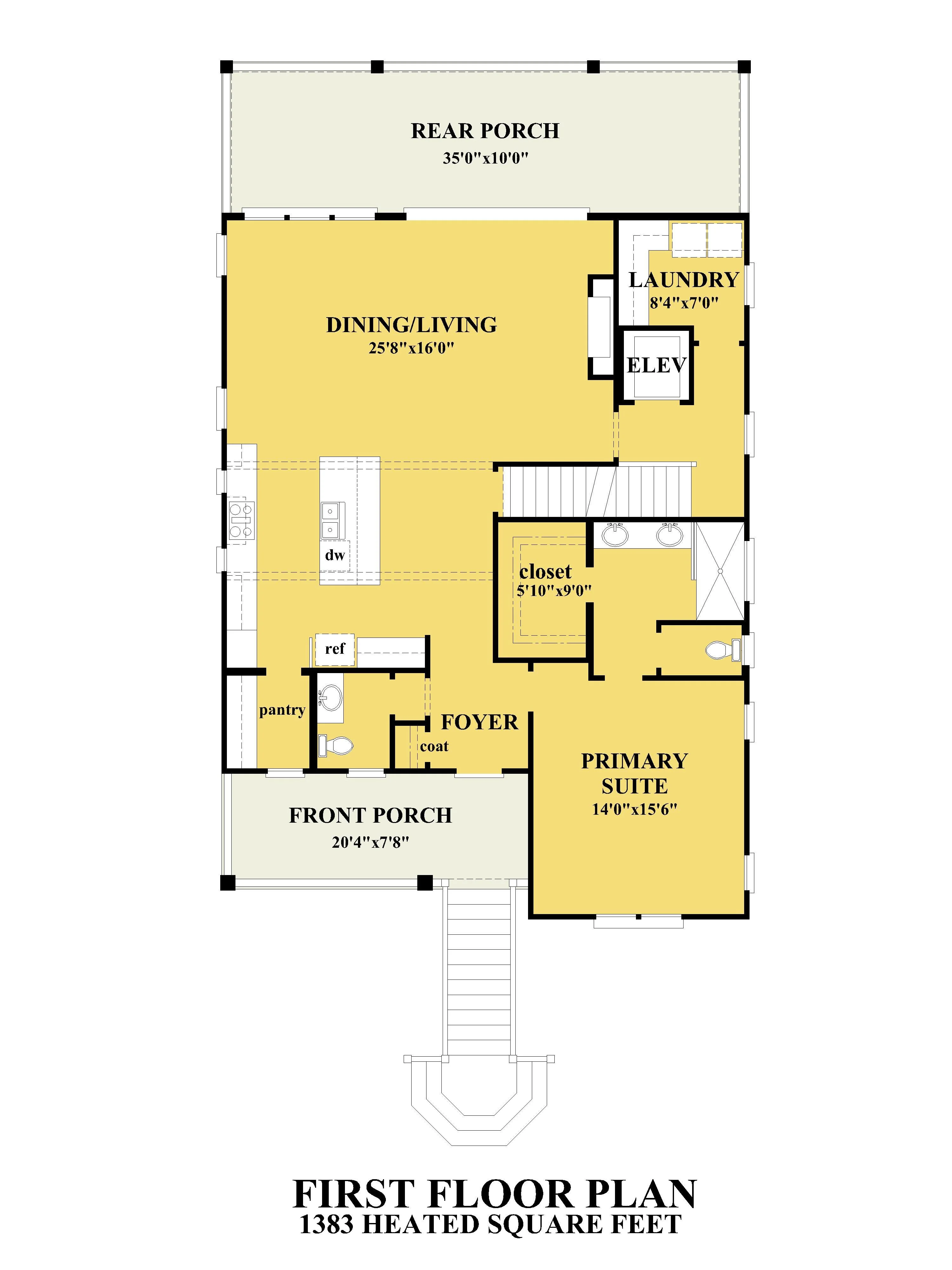

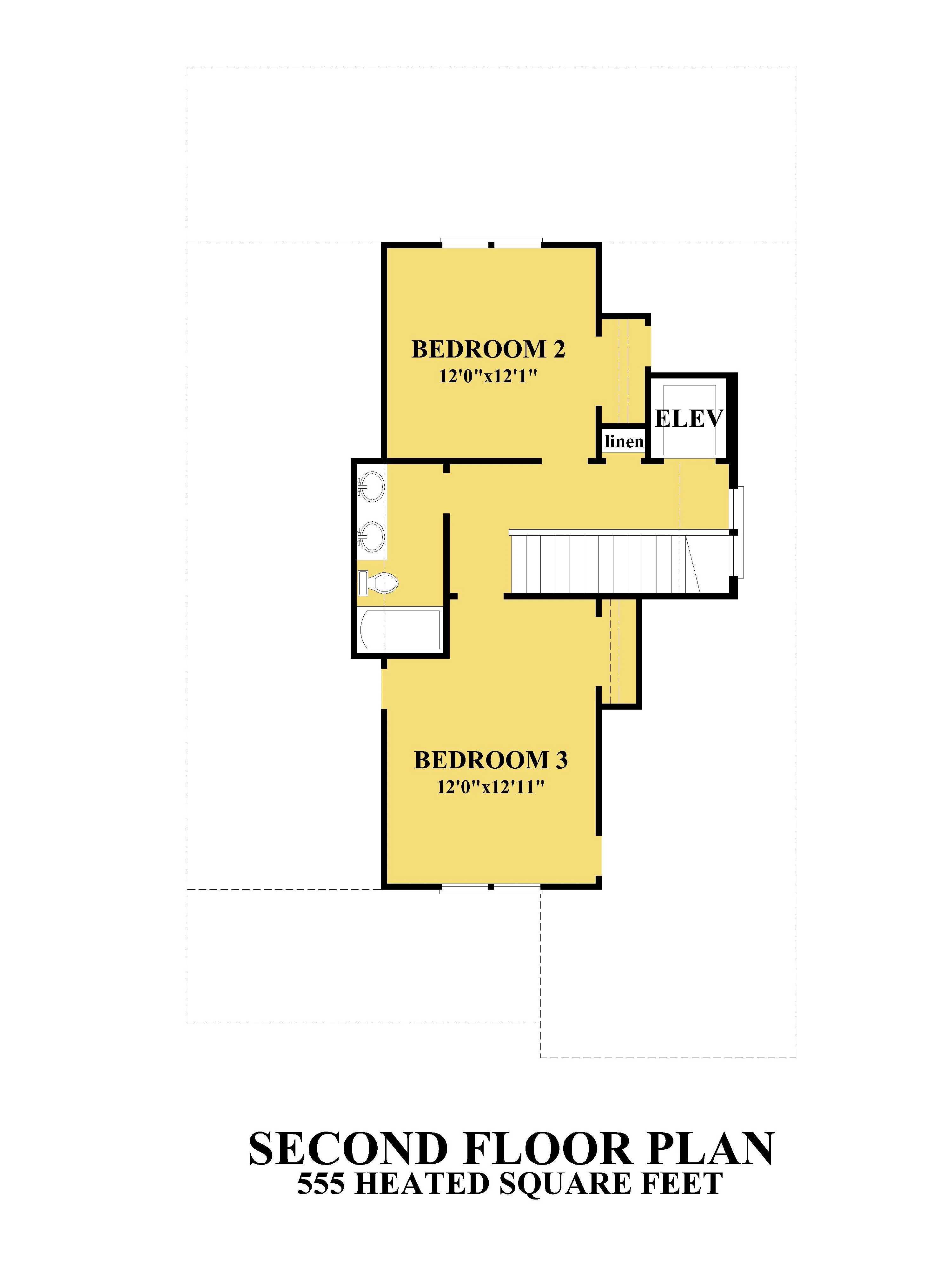

Our Bay Point features an open floor plan, kitchen with a large island and walk in pantry, main level primary suite, elevator and two extra bedrooms on the upper floor.

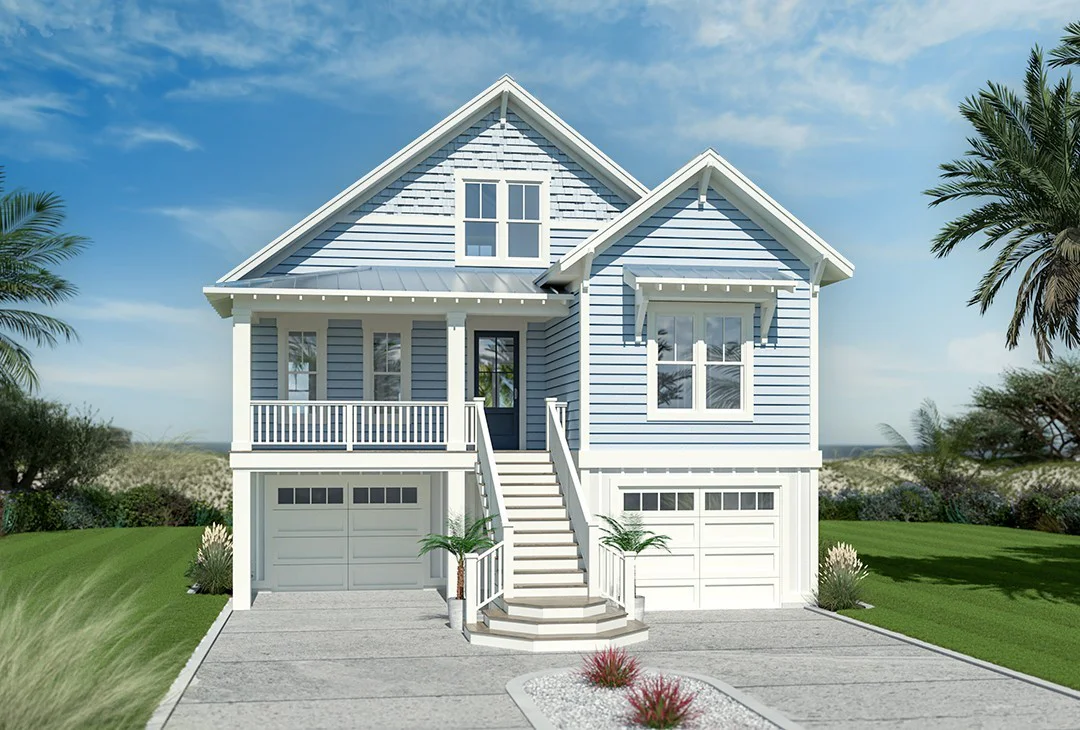

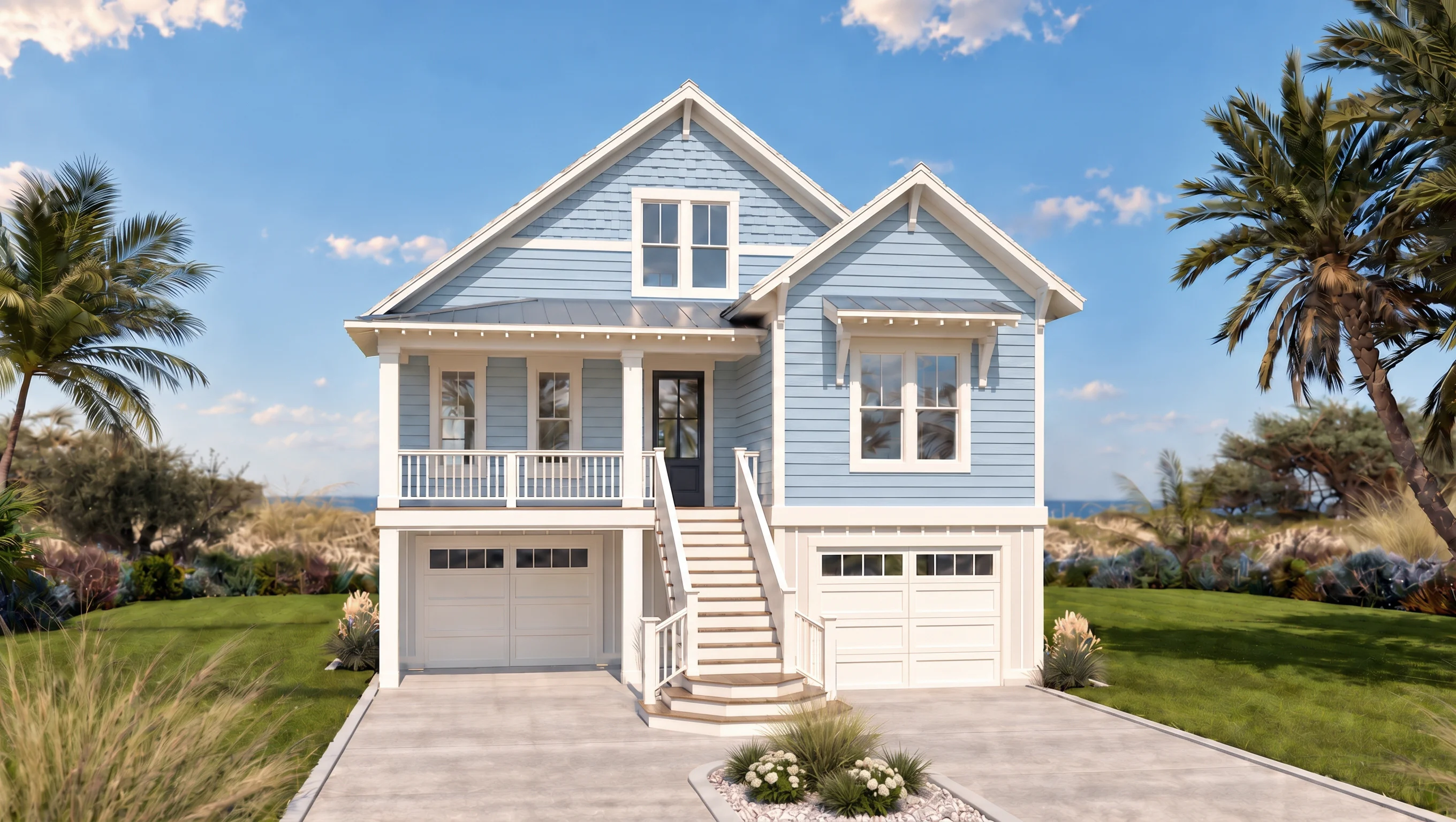

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Bay Point – One Study Copy PDF, No

$540.00

Bay Point – Electronic PDF, No

$1.920.00

Bay Point – Electronic PDF, Yes

$2.120.00

Bay Point – Electronic CAD, No

$2.400.00

Bay Point – Electronic CAD, Yes

$2.600.00

Delivery Format

One Study Copy PDF($540.00)
Electronic PDF($1.920.00)
Electronic CAD($2.400.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	1938
Foot Print	35’0” x 56’10”
Stories	3
Bedrooms	3
Bathrooms	2.5
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	9'
House Width	35' 0"
House Depth	56' 10"
Height, above ground floor slab	34' 6"
Foundation	Pilings

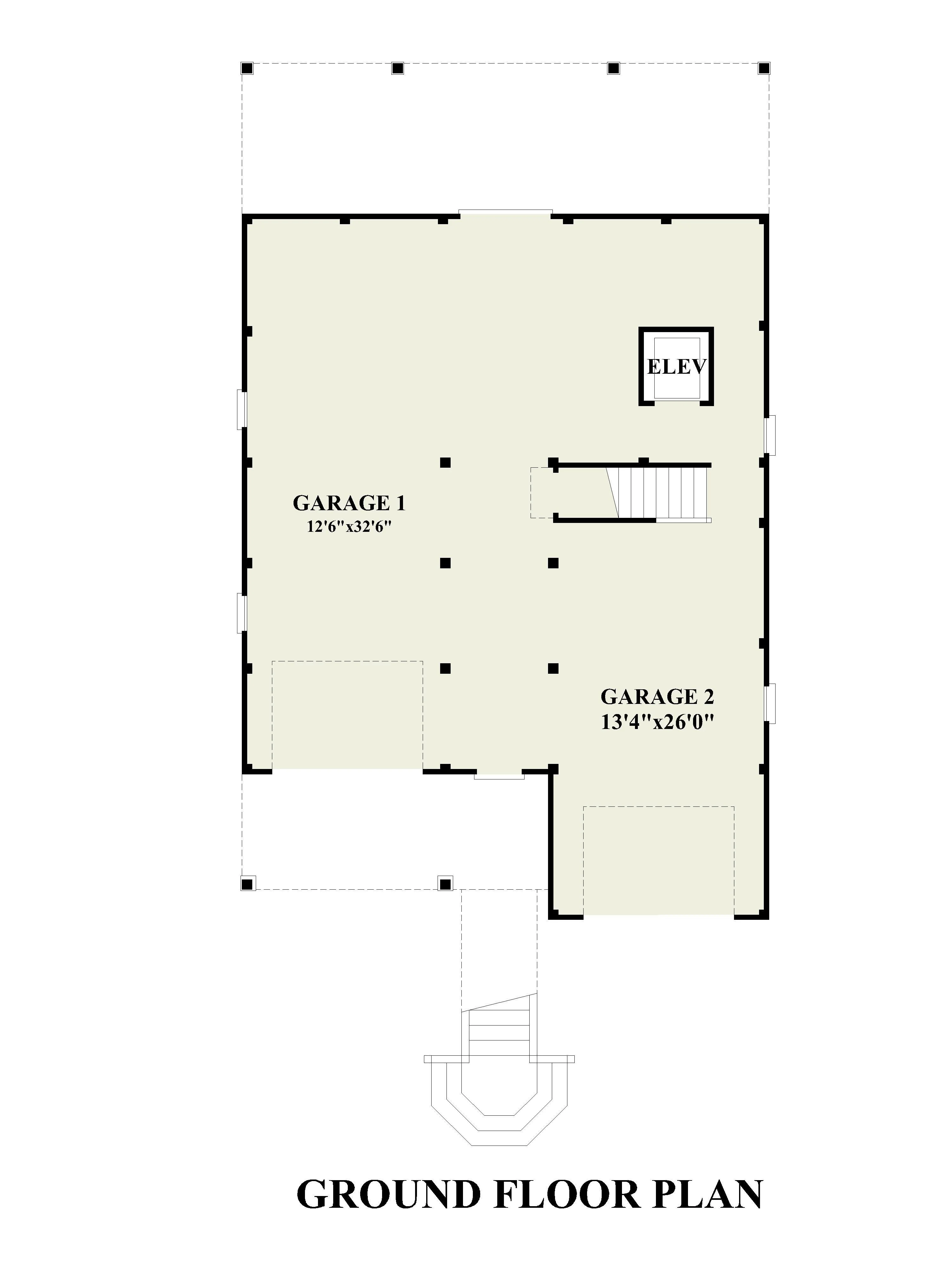

Garage	Under
Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	NO
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
