Bay Tree Cottage 2

Name: Bay Tree Cottage 2
SKU: 10860
Availability: InStock

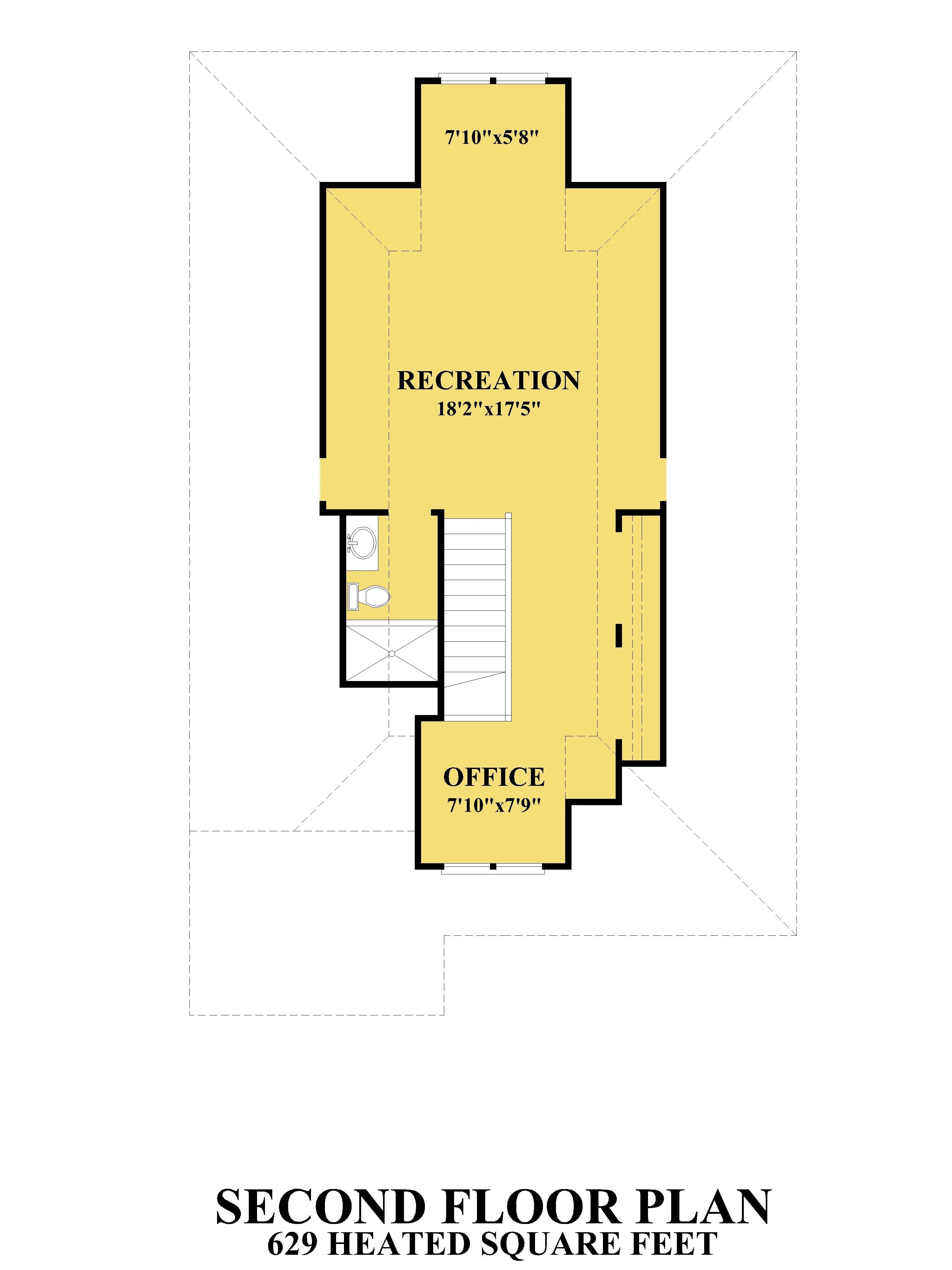

The second version of this popular coastal house plan has all the features of the original, with the addition of a second floor. The second floor is a very large recreations space with an office area, complete with a full bath.

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Bay Tree Cottage 2 – One Study Copy PDF, No

$500.00

Bay Tree Cottage 2 – Electronic PDF, No

$1.750.00

Bay Tree Cottage 2 – Electronic PDF, Yes

$1.950.00

Bay Tree Cottage 2 – Electronic CAD, No

$2.350.00

Bay Tree Cottage 2 – Electronic CAD, Yes

$2.550.00

Delivery Format

One Study Copy PDF($500.00)
Electronic PDF($1.750.00)
Electronic CAD($2.350.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	2121
Foot Print	33'-0" x 52'-4"
Stories	3
Bedrooms	3
Bathrooms	3
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	8'6"
House Width	33' 0"
House Depth	52' 4"
Height, above ground floor slab	32’11”
Foundation	Pilings
Garage	Under
Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	NO
Office/Study	YES
Elevator	NO
FROG/Bonus Room	YES
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
