Hammock Bay 2

Name: Hammock Bay 2
SKU: 8063
Availability: InStock

The sister plan to Hammock Bay, this version has a smaller footprint for challenging lot setbacks. This spacious plan still offers the same must have features of the original.

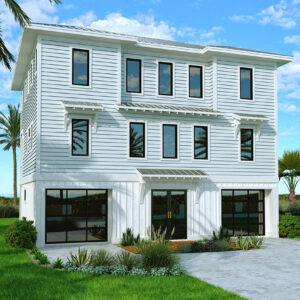

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Hammock Bay 2 – One Study Copy PDF, No

$600.00

Hammock Bay 2 – Electronic PDF, No

$2.100.00

Hammock Bay 2 – Electronic PDF, Yes

$2.300.00

Hammock Bay 2 – Electronic CAD, No

$2.820.00

Hammock Bay 2 – Electronic CAD, Yes

$3.020.00

Delivery Format

One Study Copy PDF ($600.00)
Electronic PDF ($2.100.00)
Electronic CAD ($2.820.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	2678
Foot Print	40’0” x 40’0”
Stories	3
Bedrooms	5
Bathrooms	3.5
Ground Floor Ceiling Height	9'
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	40' 0"
House Depth	40'0"
Height	37'6"
Foundation	Pilings
Garage	Under

Exterior Wall Thickness	2×6
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	NO
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
