Heron Cove

Name: Heron Cove
SKU: 1496
Availability: InStock

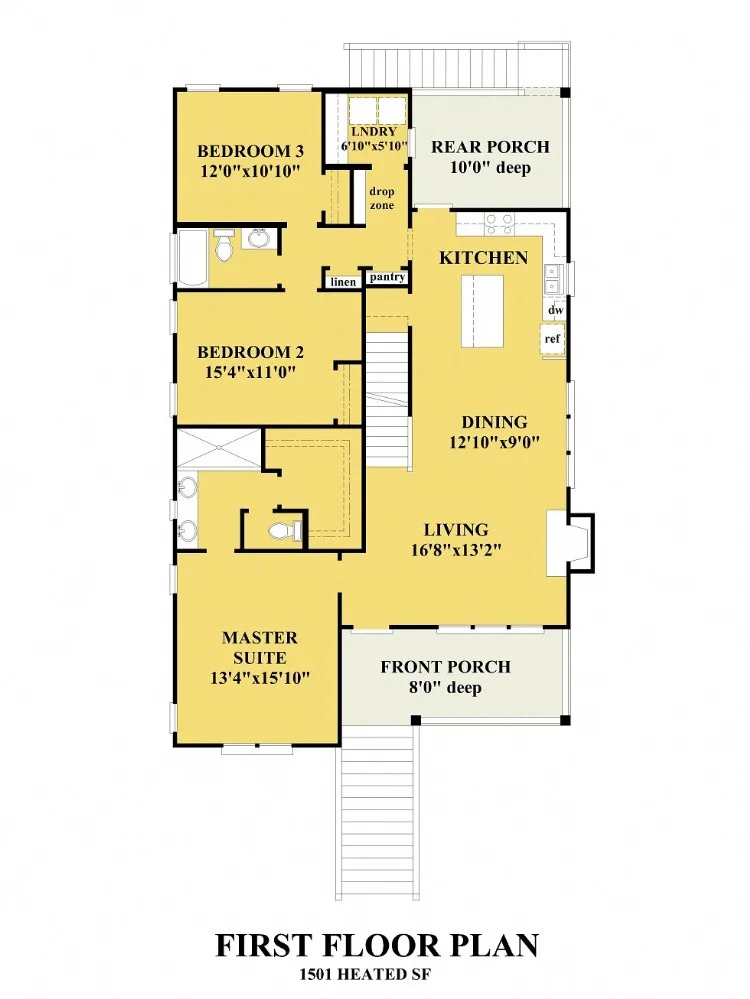

Heron Cove is a single story small cottage with a split bedroom layout. The open living plan opens to both front and rear porches. The optional second floor provides extra space for the family.

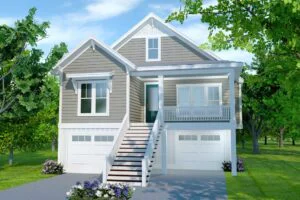

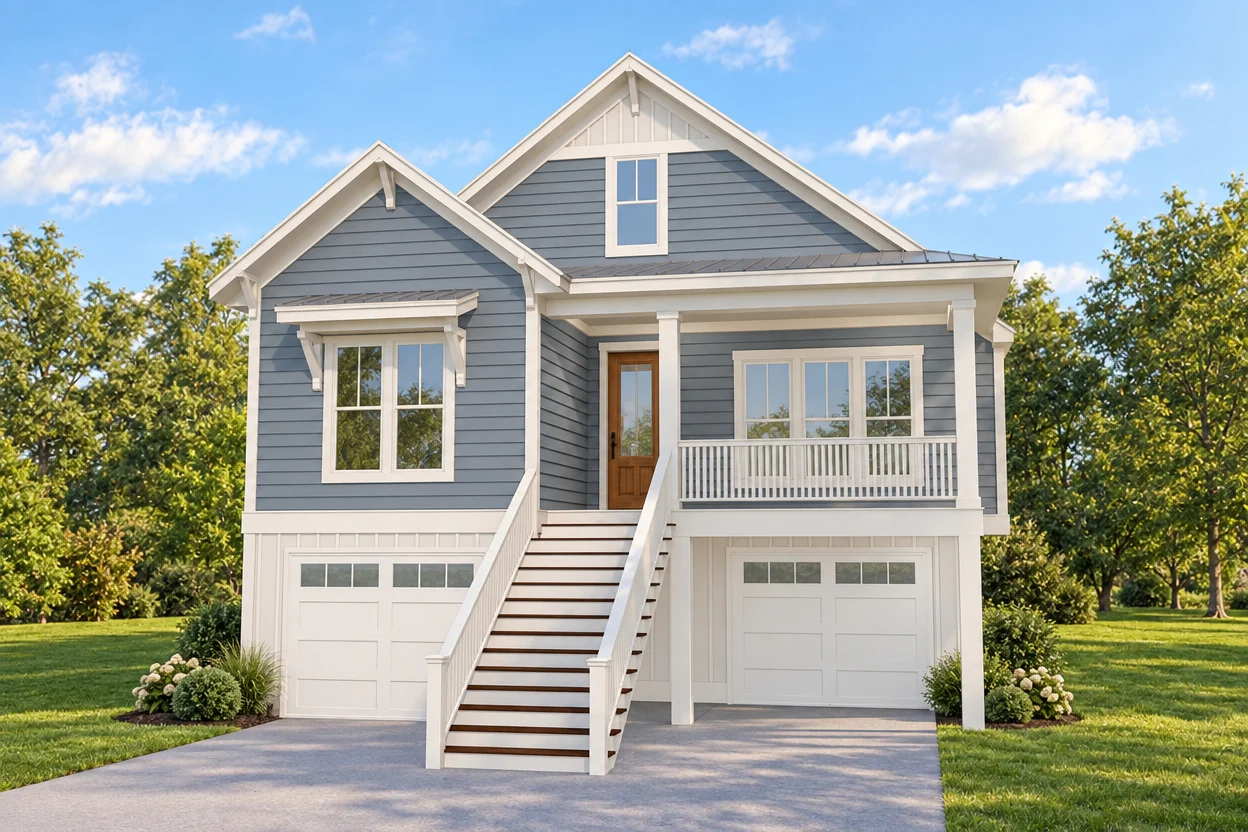

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Heron Cove – One Study Copy PDF, No

$540.00

Heron Cove – Electronic PDF, No

$1.920.00

Heron Cove – Electronic PDF, Yes

$2.120.00

Heron Cove – Electronic CAD, No

$2.400.00

Heron Cove – Electronic CAD, Yes

$2.600.00

Delivery Format

One Study Copy PDF ($540.00)
Electronic PDF ($1.920.00)
Electronic CAD ($2.400.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	1501
Foot Print	35'-0" x 54'-10"
Stories	2
Bedrooms	3
Bathrooms	2
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	9'
House Width	35' 0"
House Depth	54' 10"
Height	32' 8"
Foundation	Pilings
Garage	Under

Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	NO
Office/Study	NO
Elevator	NO
FROG/Bonus Room	YES
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
