Heron Street

Our first Duplex offering, each unit offers a private entry and elevator in this reverse house plan. These units offer open floor plans and an excellent use of space.

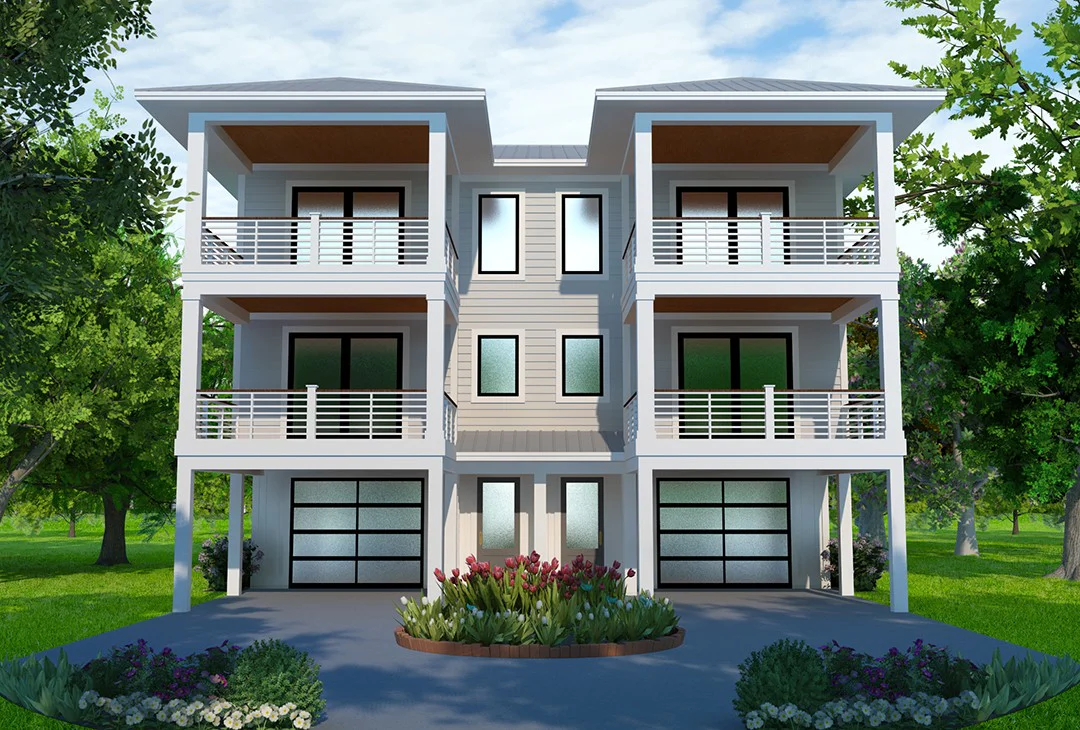

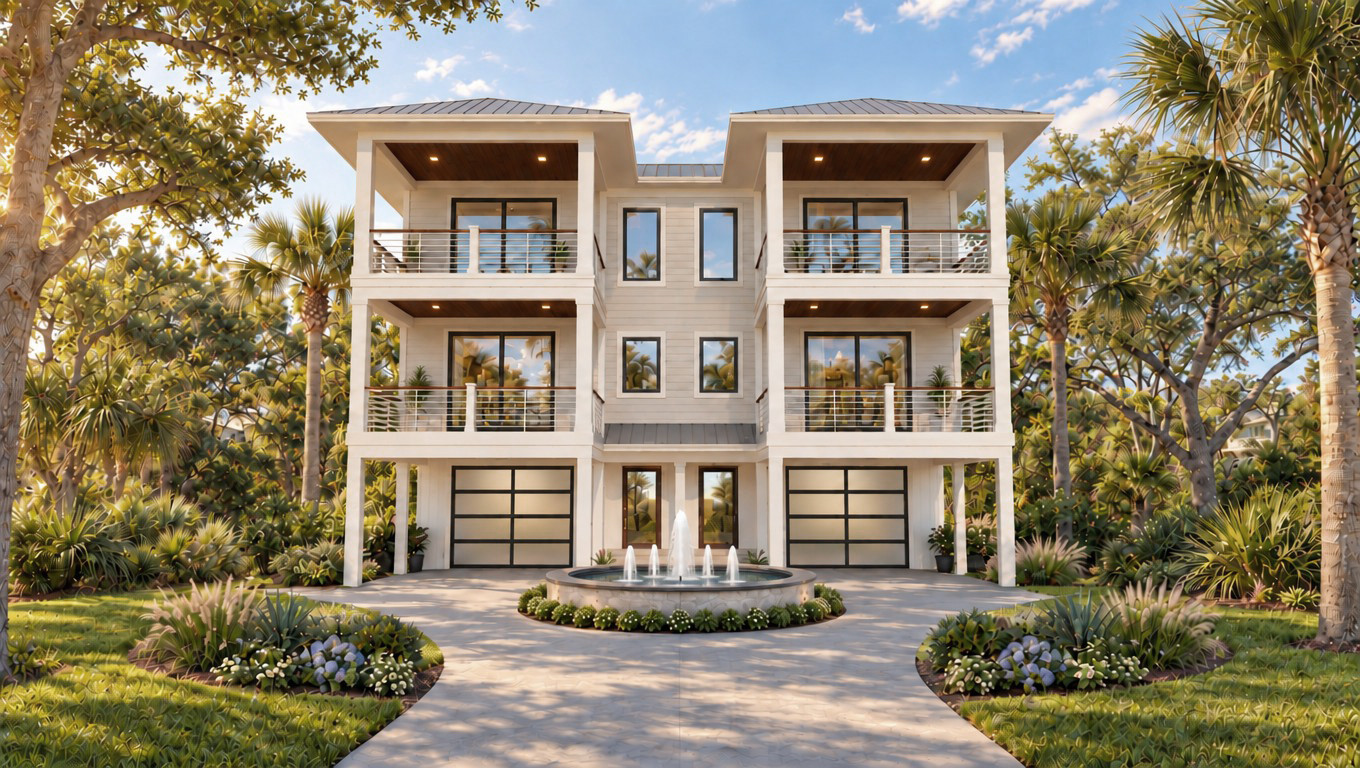

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.
Click here to create an account and save this plan.

Delivery Format

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

House Plan Specifications
SQ FT

1740 per unit

Foot Print

43’10” x 53’2”

Stories

3

Bedrooms

4

Bathrooms

3.5

Ground Floor Ceiling Height

9'

First Floor Ceiling Height

9'

Second Floor Ceiling Height

10'

House Width

43' 10"

House Depth

53'2"

Height, above ground floor slab

38' 1"

Foundation

Pilings

Garage

Under

Exterior Wall Thickness

2×4

Master Suite on main floor NO
His & Hers Closets NO
Walk In Pantry NO
Office/Study NO
Elevator YES
FROG/Bonus Room NO
Reverse Floor Plan YES
Butler's Pantry NO
Media Rooms NO
Exercise Room NO
Wet Bar NO
