Kings Bay Cottage

Name: Kings Bay Cottage
SKU: 5290
Availability: InStock

This large coastal contemporary home is perfect for a front facing view. Packed with suites, bedrooms and even a bunk room, there’s room for the entire family and a few guests. Open and spacious this home is modern at its best!

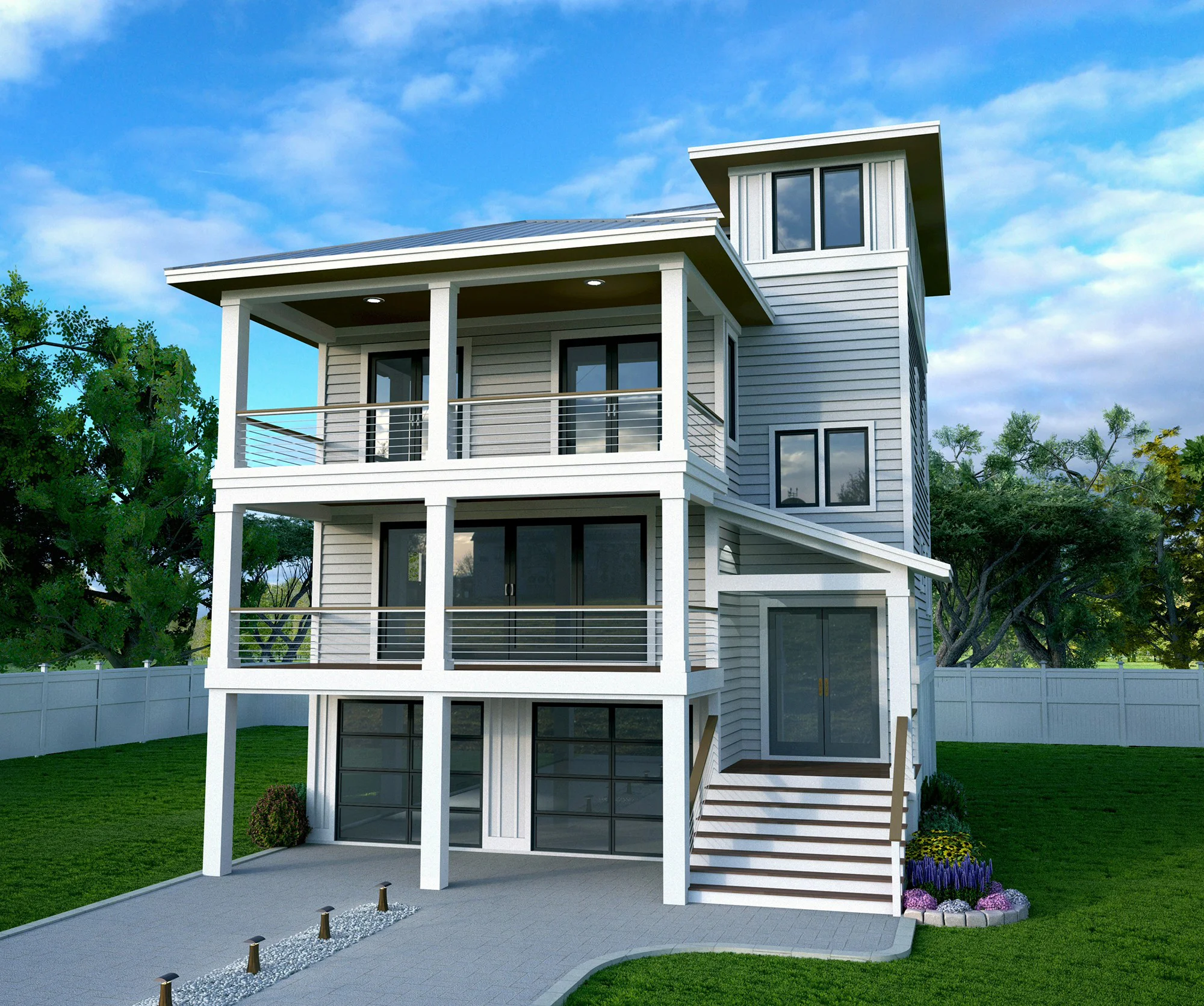

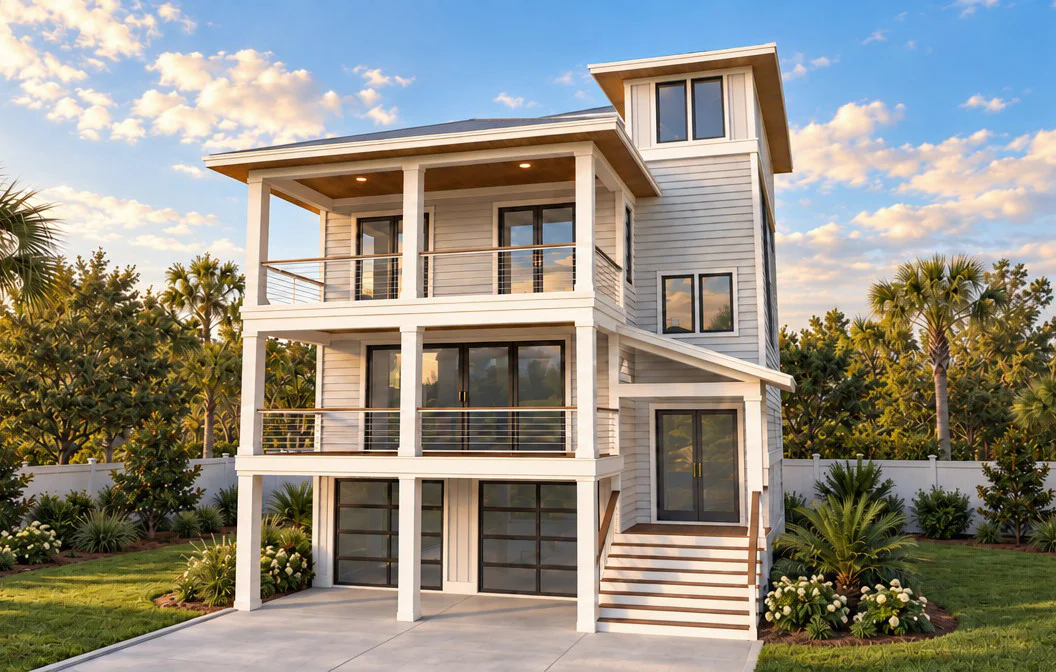

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Delivery Format

One Study Copy PDF($500.00)
Electronic PDF($1.750.00)
Electronic CAD($2.350.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	3303
Foot Print	34'6" x 56'6"
Stories	4
Bedrooms	6
Bathrooms	4.5
Ground Floor Ceiling Height	9'
First Floor Ceiling Height	9'

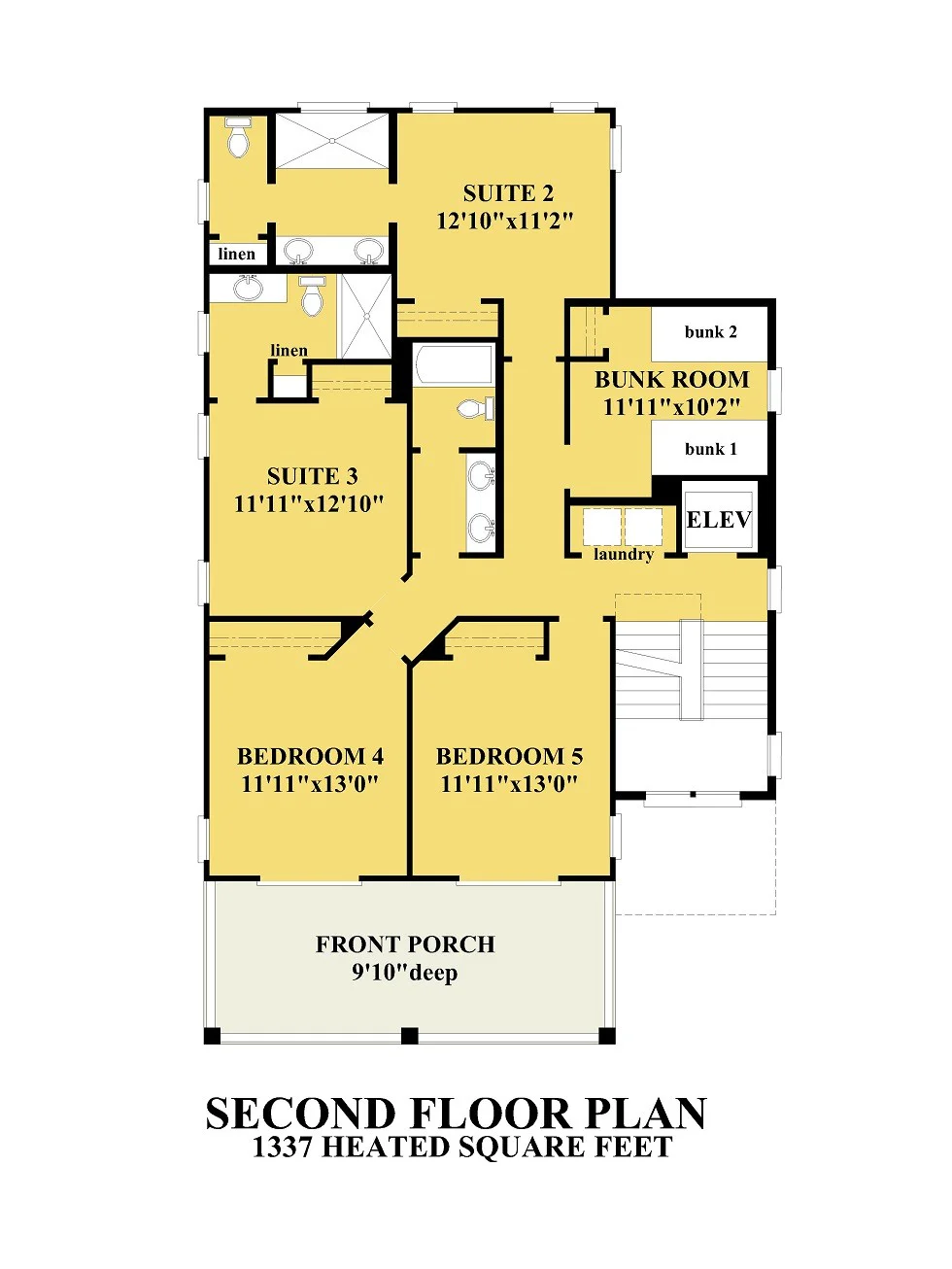

Second Floor Ceiling Height	10'

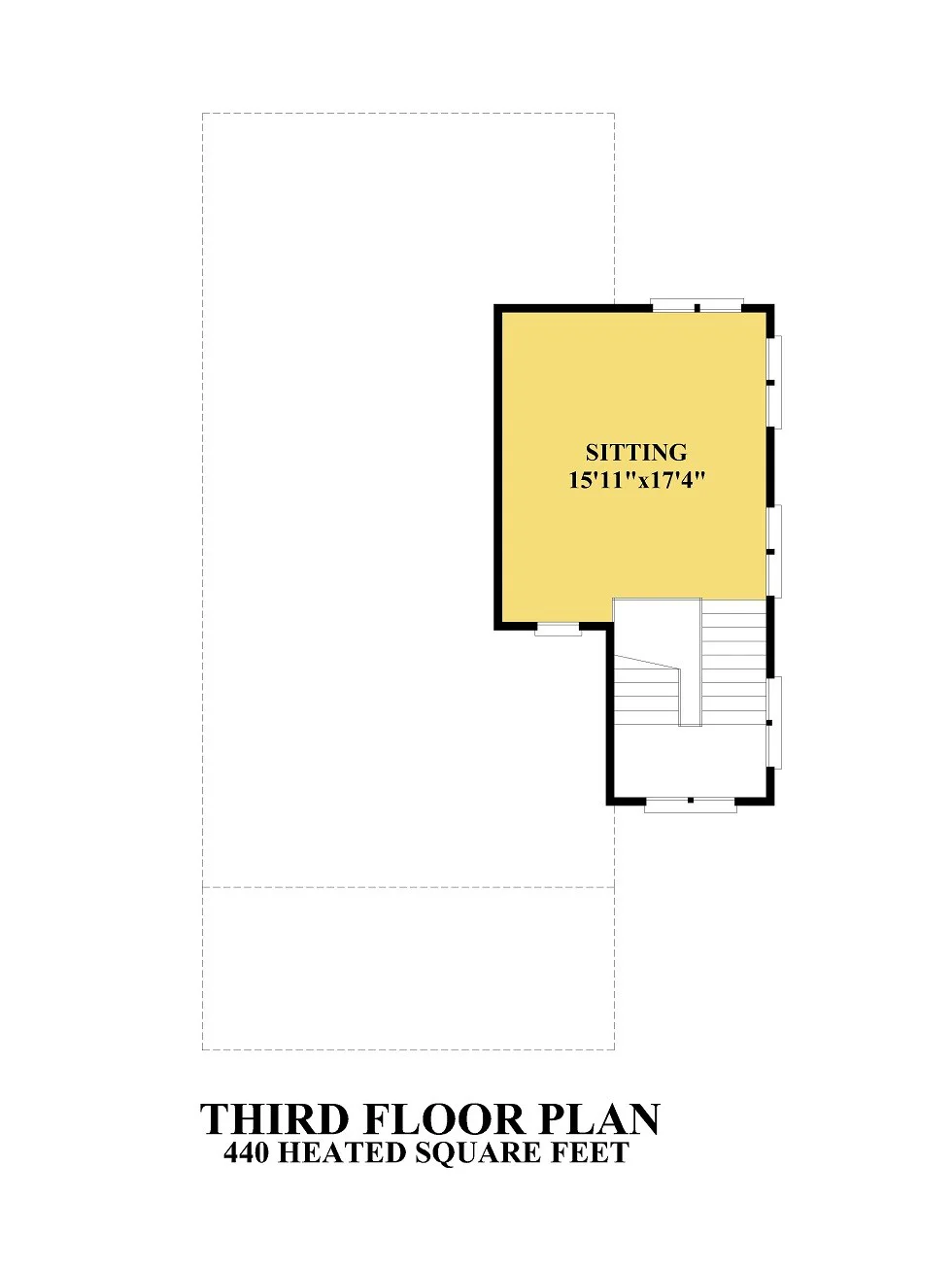

Third Floor Ceiling Height	8'
House Width	34' 6"
House Depth	56'6"
Height, above ground floor slab	44'3"
Foundation	Pilings
Garage	Under
Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	YES
Elevator	YES
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	YES
Exercise Room	YES
Wet Bar	NO
