Acorn Hill

Name: Acorn Hill
SKU: 610
Availability: InStock

Perfect for a narrow lot, Acorn Hill offers an open living concept, large garage, first floor master suite. The second floor exercise loft could be a home office.

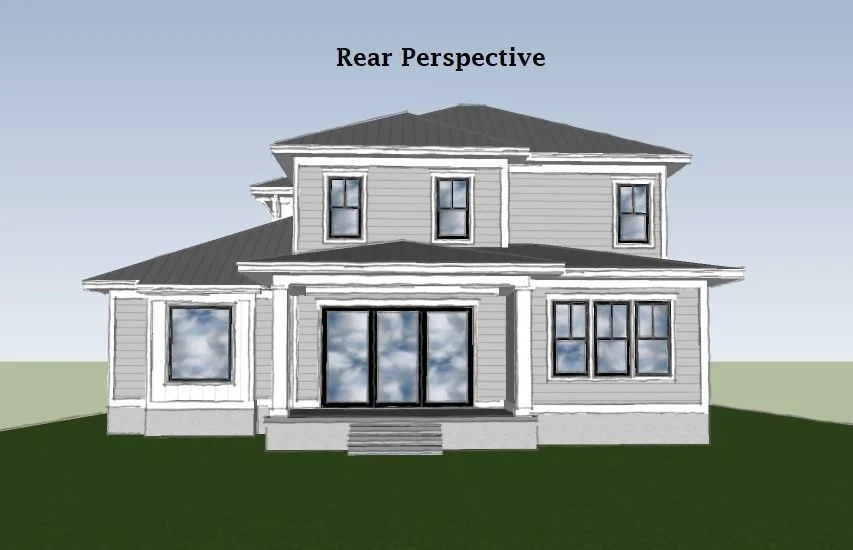

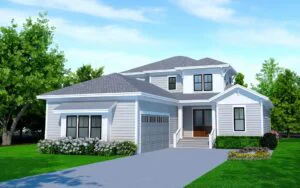

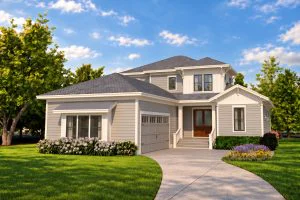

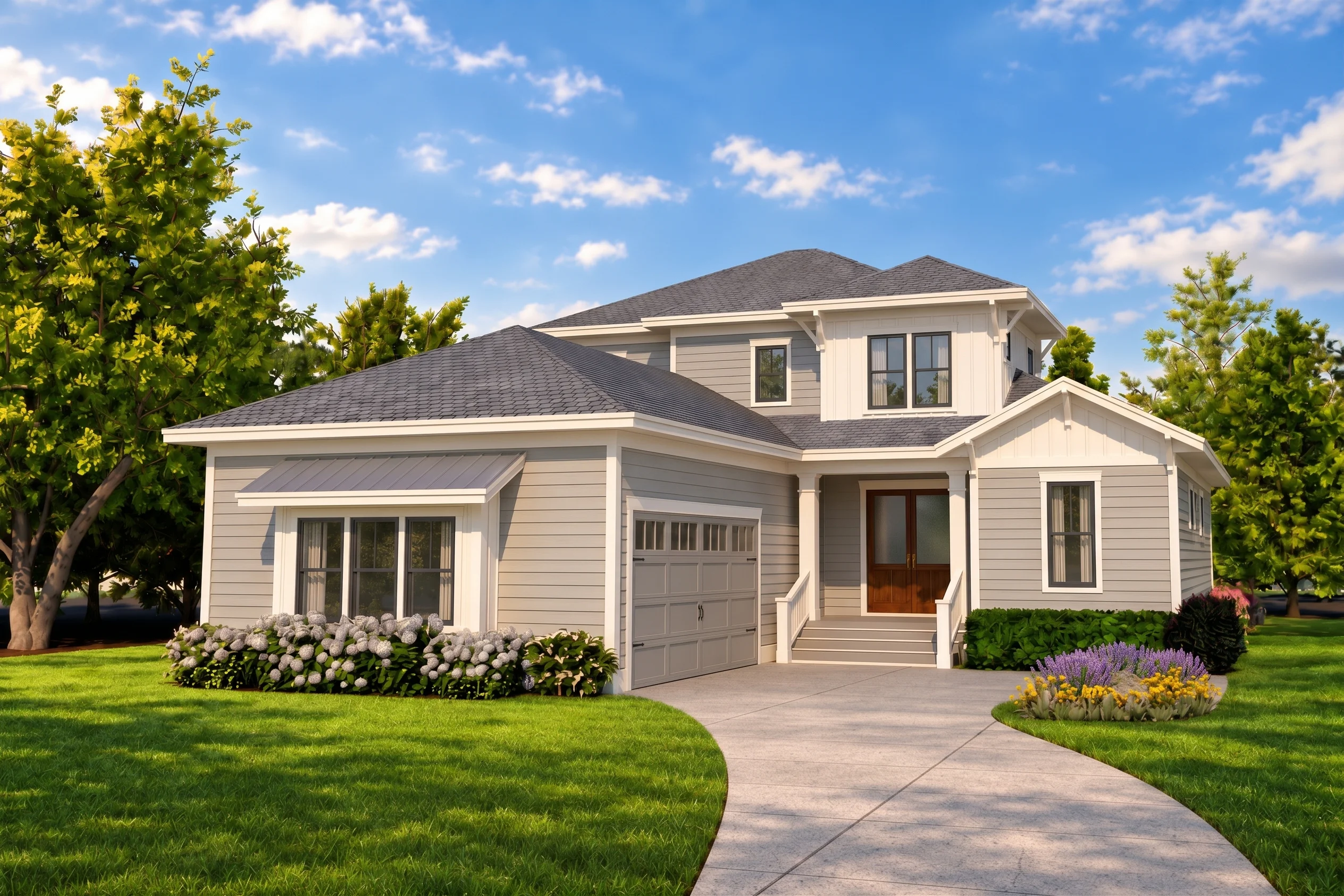

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Acorn Hill – One Study Copy PDF, Yes

$600.00

Acorn Hill – Electronic PDF, No

$2.100.00

Acorn Hill – Electronic PDF, Yes

$2.300.00

Acorn Hill – Electronic CAD, No

$2.820.00

Acorn Hill – Electronic CAD, Yes

$3.020.00

Delivery Format

One Study Copy PDF ($600.00)
Electronic PDF ($2.100.00)
Electronic CAD ($2.820.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	2867
Foot Print	46'-4" x 82'-6"
Stories	2
Bedrooms	3
Bathrooms	2.5
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	46' 4"
House Depth	82' 6"
Height	N/A
Foundation	Slab
Garage	Coutyard Load

Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	YES
Elevator	NO
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	YES
Wet Bar	NO
