Bay Island 4

Bay Island 4 incorporates all the popular features of our Bay Island design. The third floor space is integral with the main roof instead of a cupola.

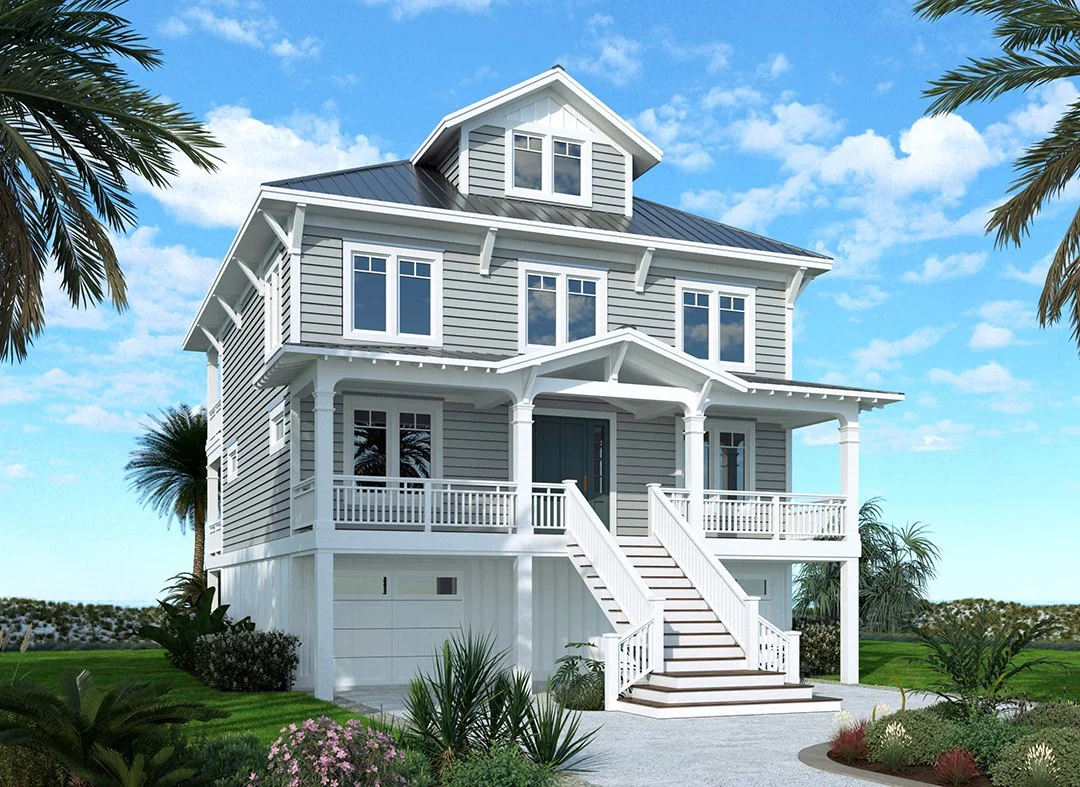

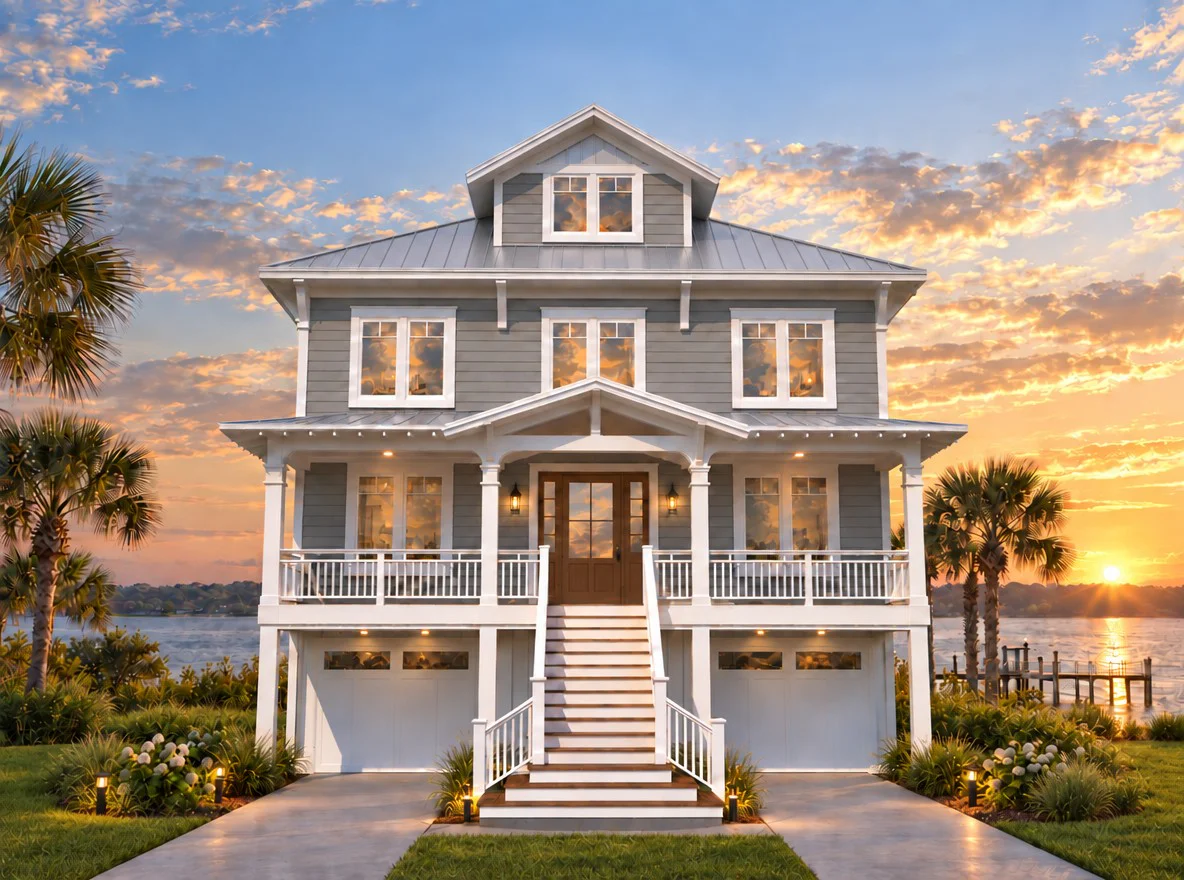

Bay Island 4 by SDC House Plans on Sketchfab

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.
Click here to create an account and save this plan.

Delivery Format

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.
Add to wishlist
House Plan Specifications
SQ FT

2682
Foot Print

34’8” x 52’6”
Stories

4
Bedrooms

4
Bathrooms

3.5

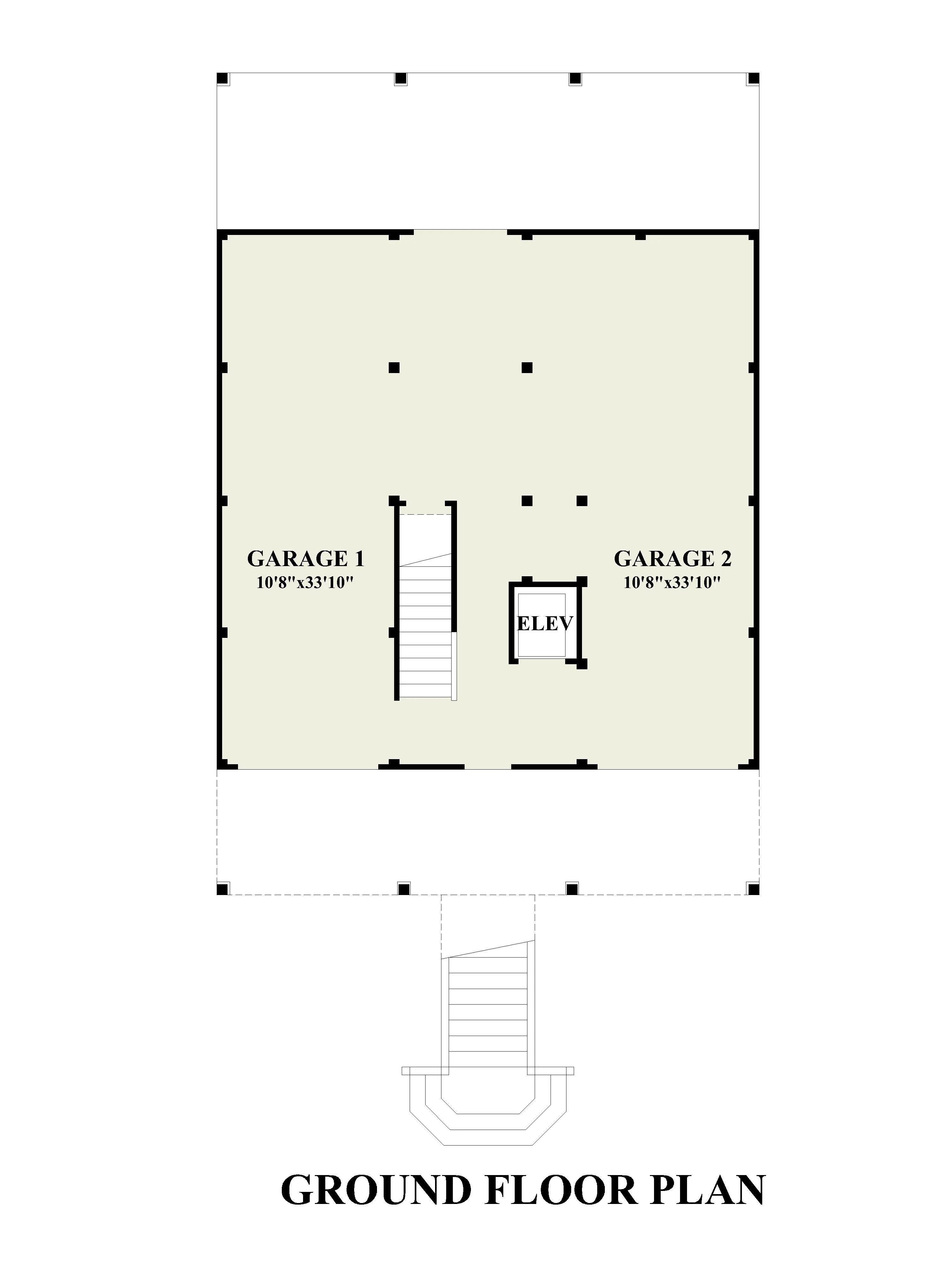

Ground Floor Ceiling Height

8'

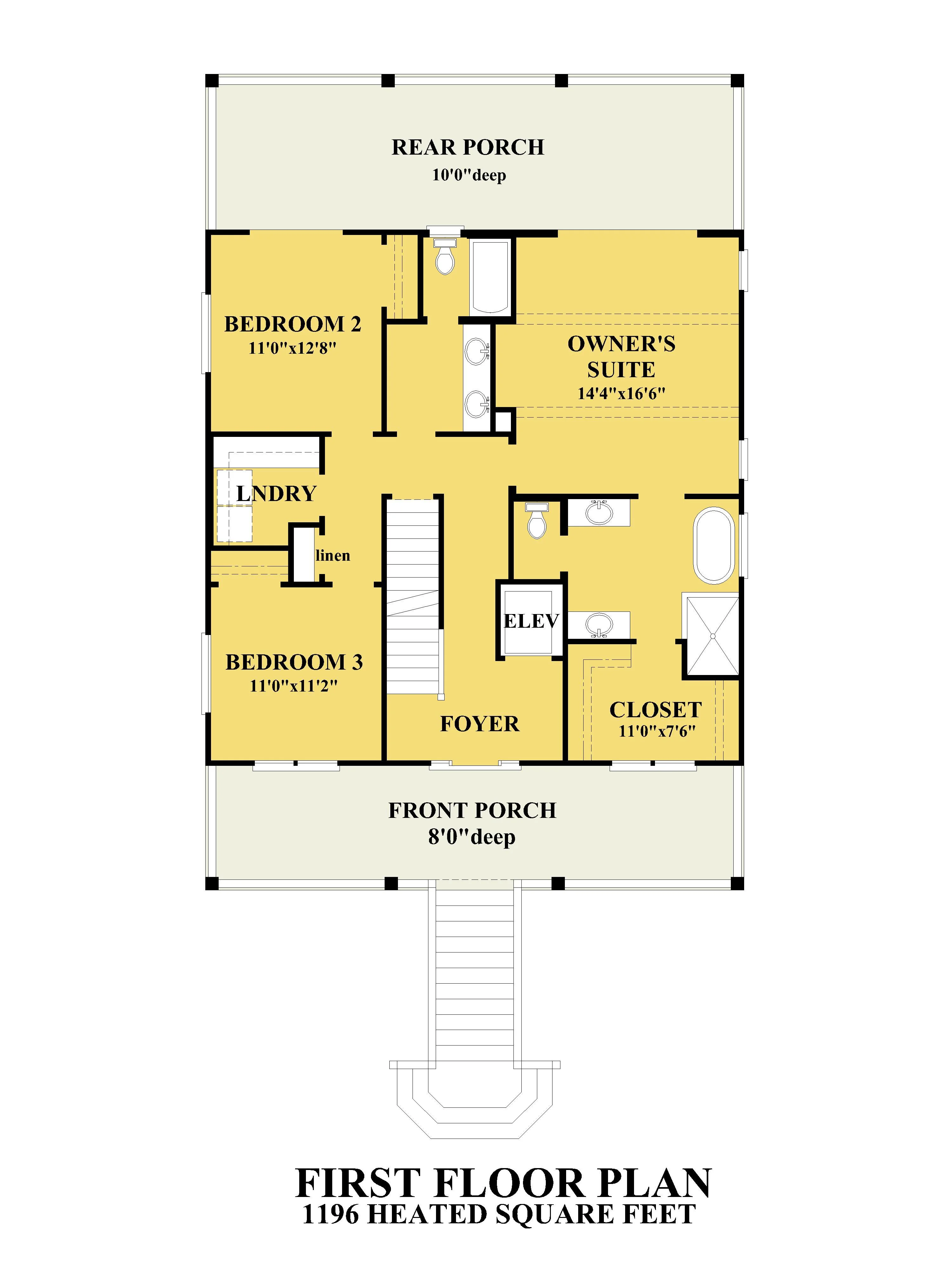

First Floor Ceiling Height

9'

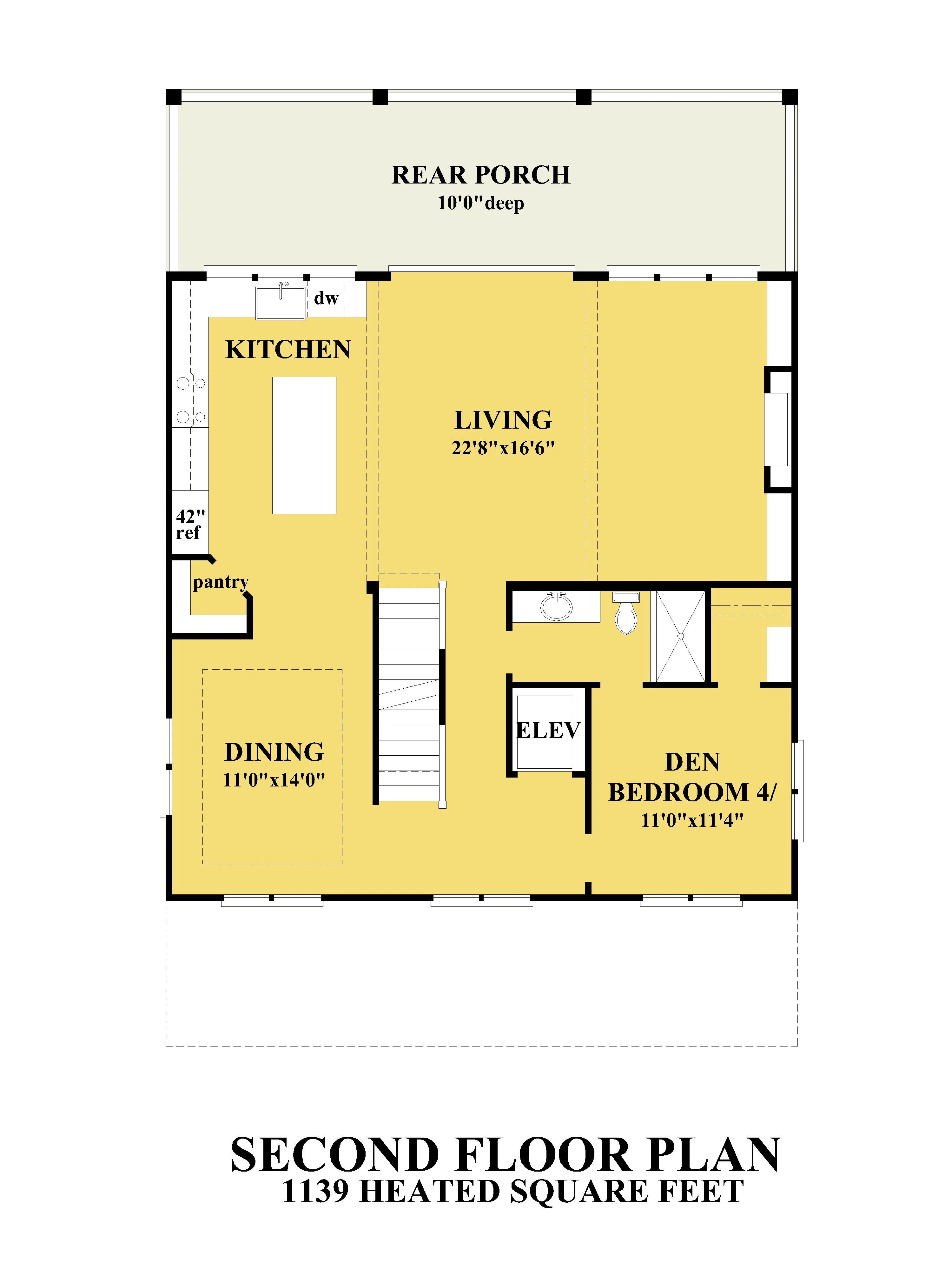

Second Floor Ceiling Height

9'

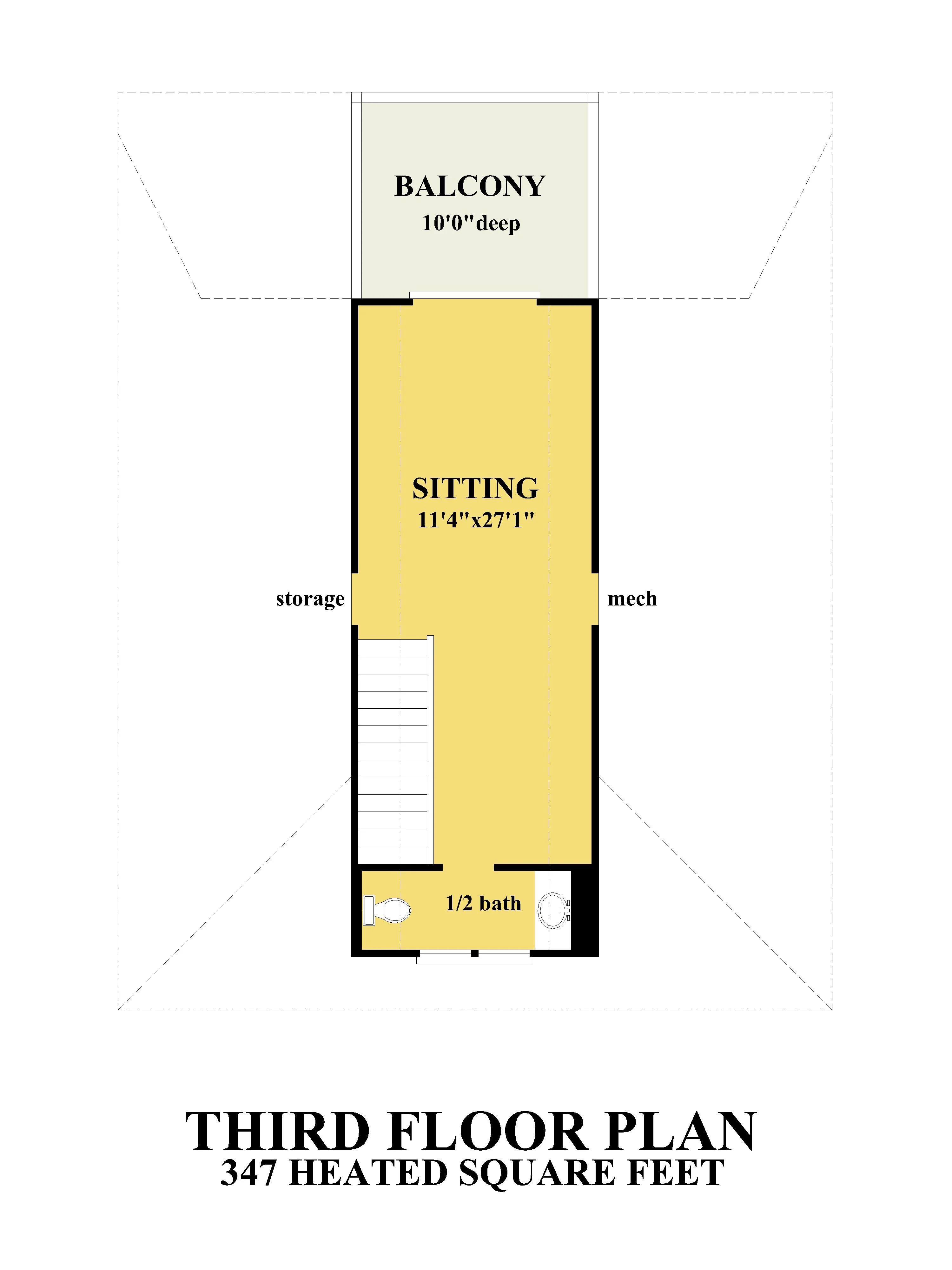

Third Floor Ceiling Height

8'
House Width

34' 8"
House Depth

52' 6"
Height, above ground floor slab

40'6"
Foundation

Pilings
Garage

Under
Exterior Wall Thickness

2×4
Master Suite on main floor NO
His & Hers Closets NO
Walk In Pantry YES
Office/Study YES
Elevator YES
FROG/Bonus Room NO
Reverse Floor Plan YES
Butler's Pantry NO
Media Rooms NO
Exercise Room NO
Wet Bar NO
