Bayside Wharf

Name: Bayside Wharf
SKU: 1652
Availability: InStock

Featured in the September, 2006 issue of Coastal Living magazine. The reverse floor plan allows for expanded views. Four bedrooms with a low square footage make this plan a great vacation home.

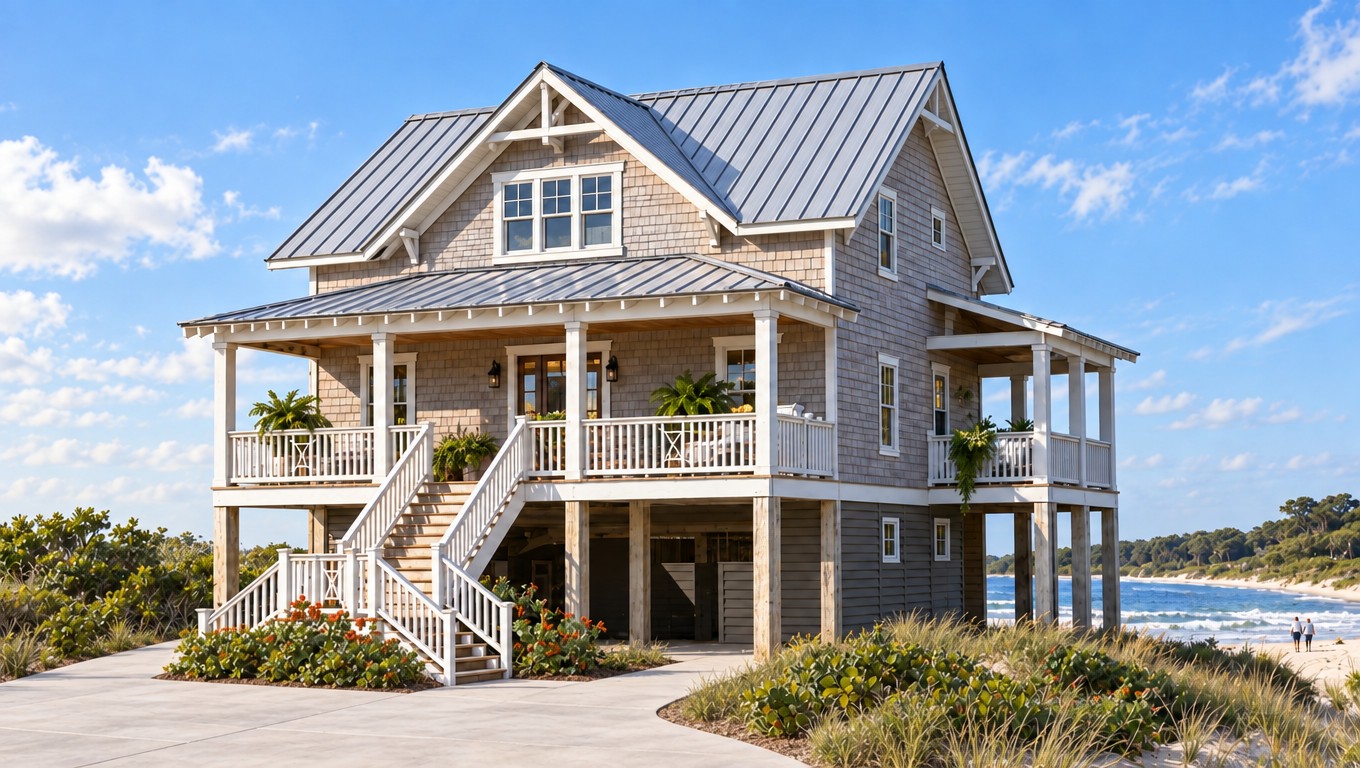

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Bayside Wharf – One Study Copy PDF, No

$600.00

Bayside Wharf – Electronic PDF, No

$2.100.00

Bayside Wharf – Electronic PDF, Yes

$2.300.00

Bayside Wharf – Electronic CAD, No

$2.820.00

Bayside Wharf – Electronic CAD, Yes

$3.020.00

Delivery Format

One Study Copy PDF ($600.00)
Electronic PDF ($2.100.00)
Electronic CAD ($2.820.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	2082
Foot Print	51'-0x52'6
Stories	3
Bedrooms	4
Bathrooms	3
Ground Floor Ceiling Height	8'
First Floor Ceiling Height	9'
Second Floor Ceiling Height	9'
House Width	51' 0"
House Depth	52' 6"
Height	35' 8"
Foundation	Pilings
Garage	Under

Exterior Wall Thickness	2×4
Master Suite on main floor	NO
His & Hers Closets	YES
Walk In Pantry	YES
Office/Study	NO
Elevator	NO
FROG/Bonus Room	NO
Reverse Floor Plan	YES
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
