Three Gables

Name: Three Gables
SKU: 3795
Availability: InStock

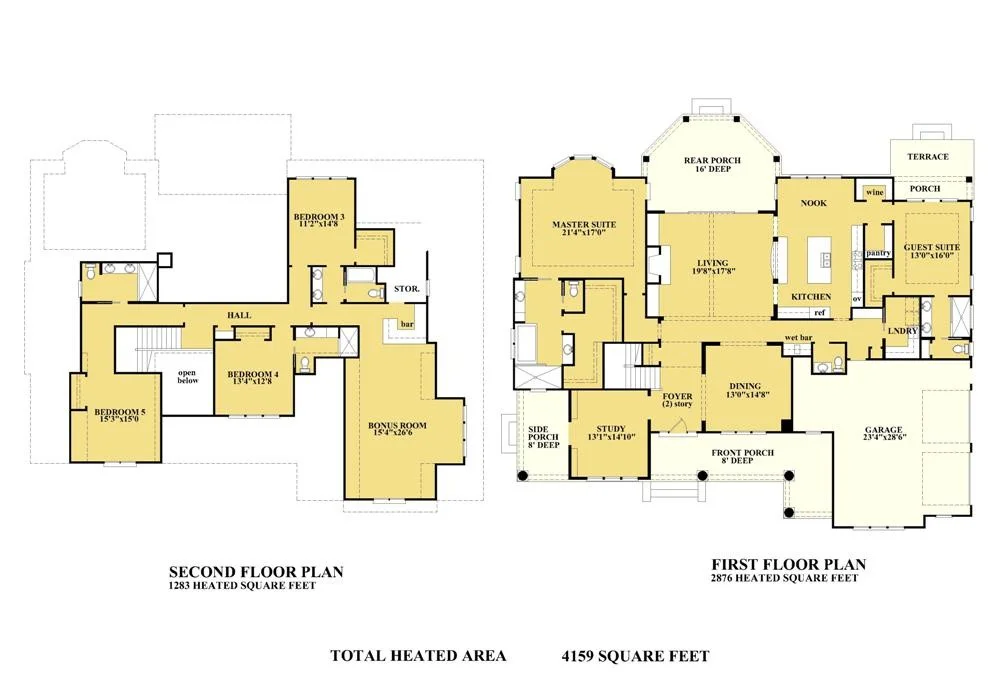

This estate home offers an open living plan with private study, master and guest suite on the first floor, generous secondary bedrooms and a large bonus room with wet bar.

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Click here to create an account and save this plan.

Choose an option

Three Gables – One Study Copy PDF, No

$840.00

Three Gables – Electronic PDF, No

$2.520.00

Three Gables – Electronic PDF, Yes

$2.720.00

Three Gables – Electronic CAD, No

$3.300.00

Three Gables – Electronic CAD, Yes

$3.500.00

Delivery Format

One Study Copy PDF($840.00)
Electronic PDF($2.520.00)
Electronic CAD($3.300.00)

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

Mirror/Flip the Plan

Delivery Format
Mirror/Flip the Plan

Add to wishlist

House Plan Specifications

SQ FT	4802
Foot Print	79'0"x71'0"
Stories	2
Bedrooms	5
Bathrooms	5.5
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	79' 0"
House Depth	71' 0"
Height, above ground floor slab	N/A
Foundation	Slab
Garage	Side Load
Exterior Wall Thickness	2×6
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	YES
Elevator	NO
FROG/Bonus Room	YES
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	YES
