Three Gables

Name: Three Gables
SKU: 3795
Availability: InStock

This estate home offers an open living plan with private study, master and guest suite on the first floor, generous secondary bedrooms and a large bonus room with wet bar.

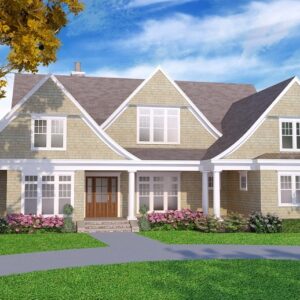

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Three Gables – One Study Copy PDF, No

$840.00

Three Gables – Electronic PDF, No

$2.520.00

Three Gables – Electronic PDF, Yes

$2.720.00

Three Gables – Electronic CAD, No

$3.300.00

Three Gables – Electronic CAD, Yes

$3.500.00

Delivery Format

One Study Copy PDF ($840.00)
Electronic PDF ($2.520.00)
Electronic CAD ($3.300.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

House Plan Specifications

SQ FT	4802
Foot Print	79'0"x71'0"
Stories	2
Bedrooms	5
Bathrooms	5.5
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	79' 0"
House Depth	71' 0"
Height	N/A
Foundation	Slab
Garage	Side Load

Exterior Wall Thickness	2×6
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	YES
Office/Study	YES
Elevator	NO
FROG/Bonus Room	YES
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	YES
