Anchor Bay

This reverse floor plan is designed for convenience and relaxation. A welcoming front porch leads into the foyer, flanked by two spacious bedrooms and a shared bath with a linen closet nearby. Toward the rear, the owner’s suite provides a private retreat with a large walk-in closet, a luxurious wet room, and direct access to the rear porch. Additional features include a laundry room, elevator, mechanical space, and coat closet for added functionality. The expansive rear porch is perfect for outdoor entertaining or simply enjoying the view.

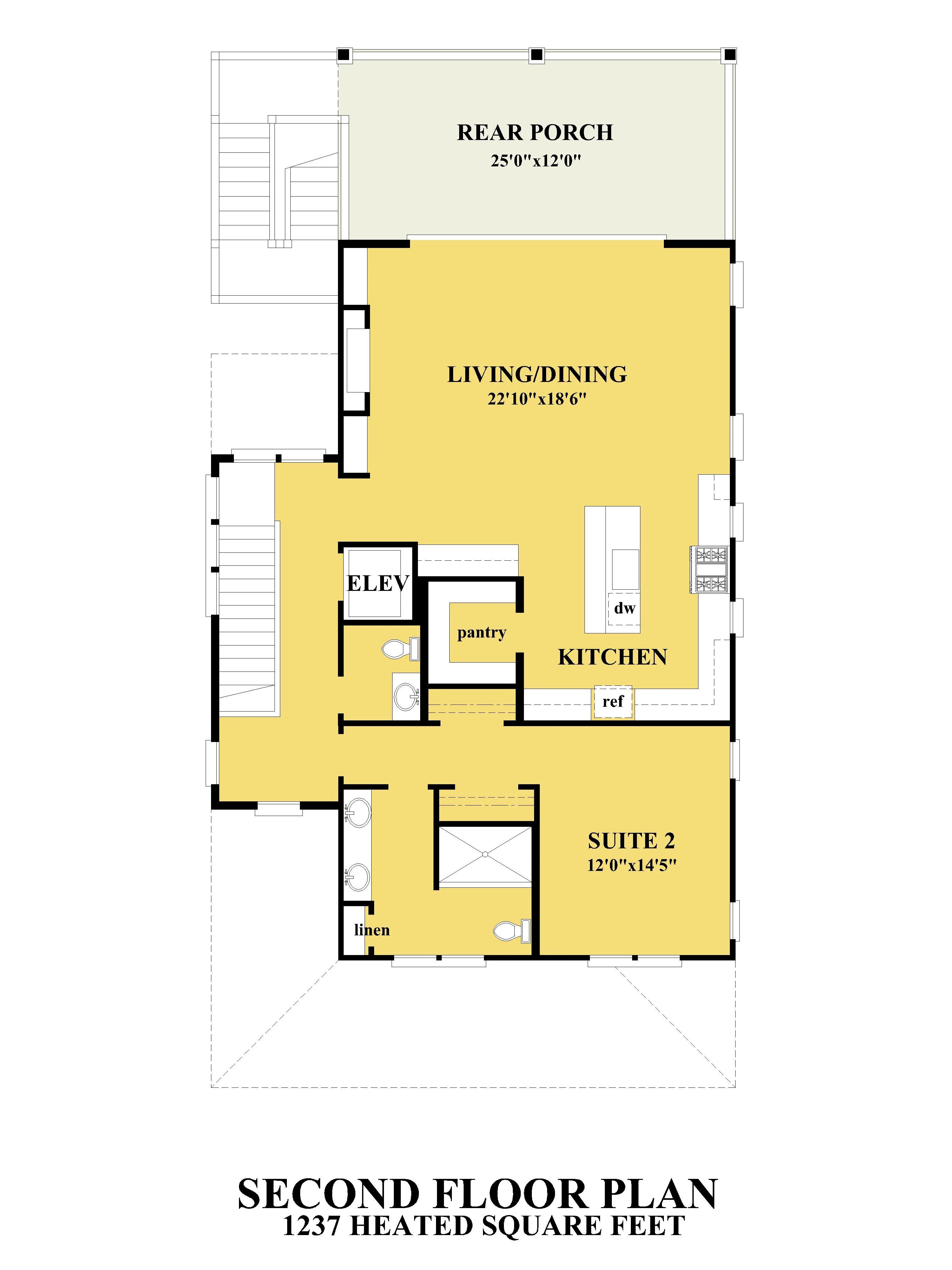

The second floor features an open and inviting layout designed for entertaining and everyday living. The spacious living and dining area seamlessly connects to the kitchen, which includes a large island, walk-in pantry, and easy access to the elevator. Sliding doors open to a generous rear porch, perfect for outdoor dining or relaxing with a view. A second suite on this level offers a private retreat with an attached bath and nearby linen storage. Thoughtful design details create a comfortable flow between indoor and outdoor spaces, ideal for coastal or scenic settings.

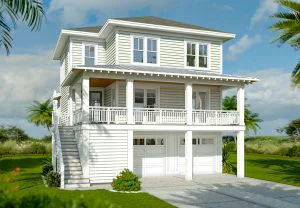

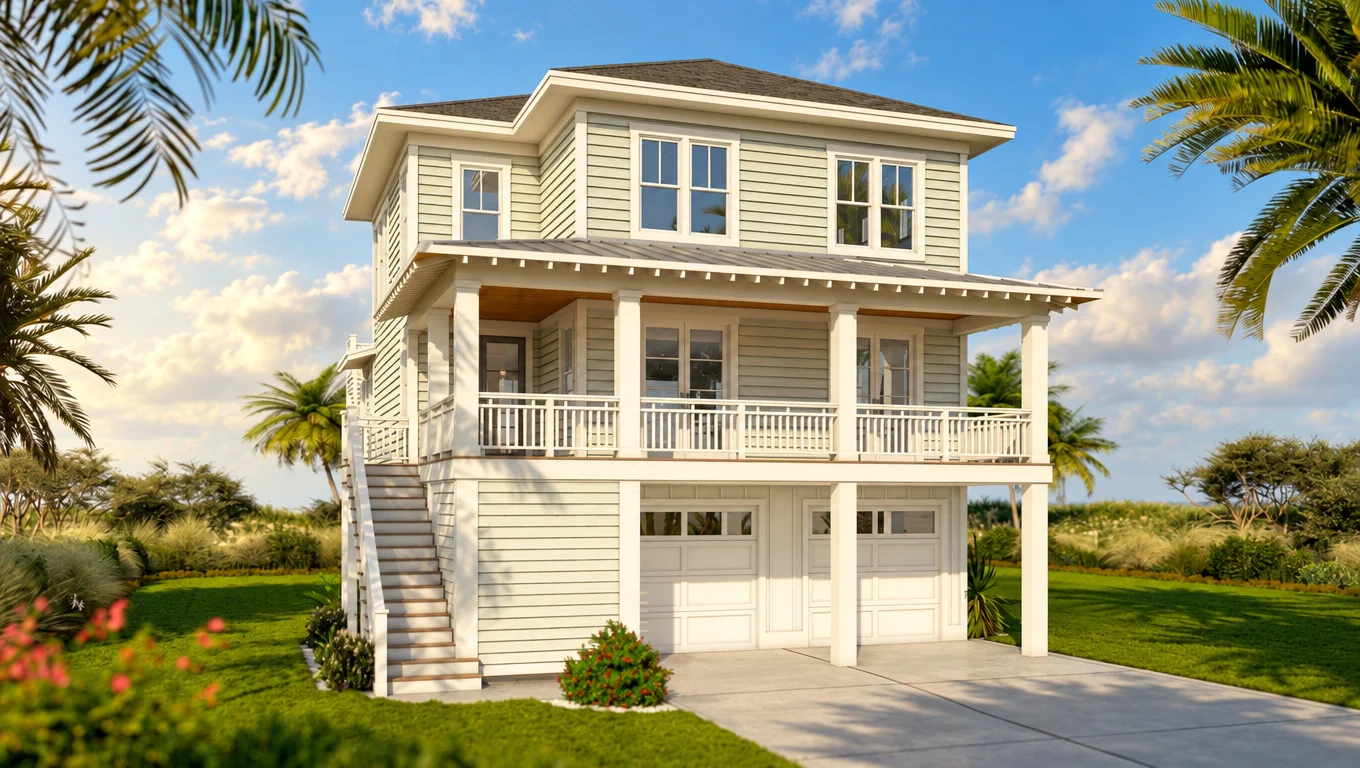

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.
Click here to create an account and save this plan.
$500.00
$1.750.00
$1.950.00
$2.350.00
$2.550.00

Delivery Format

For help selecting the proper format please click here.

If you would like to customize this house plan click here.

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Please call to purchase additional or multi-licenses.

House Plan Specifications
SQ FT

2600

Foot Print

33’0” x 65’4” (w/out stairs)

Stories

3

Bedrooms

4

Bathrooms

3.5

Ground Floor Ceiling Height

9'

First Floor Ceiling Height

9'

Second Floor Ceiling Height

10'

House Width

33' 0"

House Depth

65'4"

Height, above ground floor slab

38' 3"

Foundation

Pilings

Garage

Under

Exterior Wall Thickness

2×4

Master Suite on main floor NO
His & Hers Closets NO
Walk In Pantry YES
Office/Study NO
Elevator YES
FROG/Bonus Room NO
Reverse Floor Plan YES
Butler's Pantry NO
Media Rooms NO
Exercise Room NO
Wet Bar NO
