Bay Street

Name: Bay Street
SKU: 627
Availability: InStock

Our Bay Street provides enough room for your family with a total of five bedrooms with two on the main level. Features include an open living plan and double front wrap around porches.

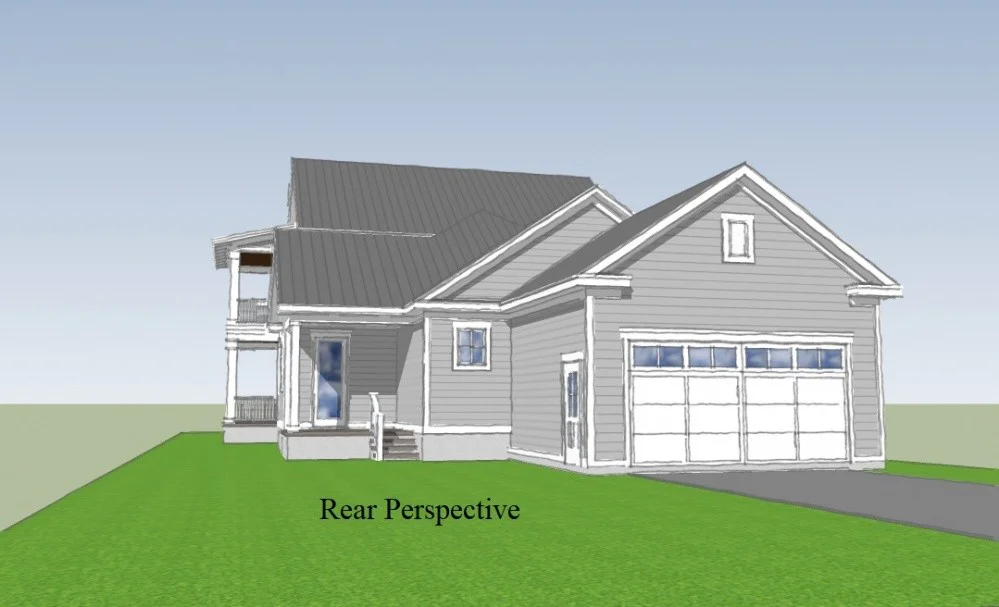

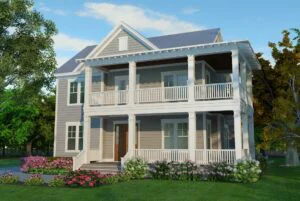

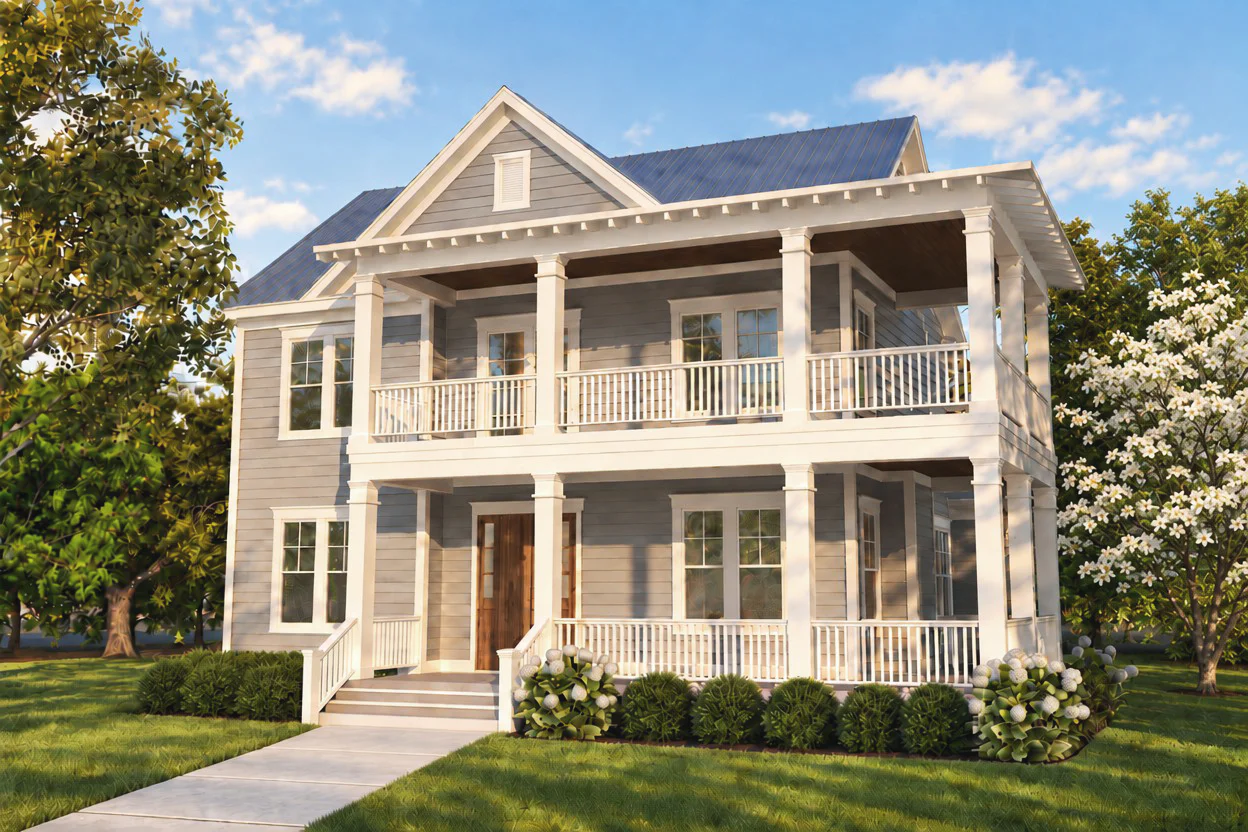

*3D Renderings are for illustrative purposed only. They may not be an exact repersentation of the plan.

Create an Account

Add to wishlist

Choose an option

Bay Street – One Study Copy PDF, No

$600.00

Bay Street – Electronic PDF, No

$2.100.00

Bay Street – Electronic PDF, Yes

$2.300.00

Bay Street – Electronic CAD, No

$2.820.00

Bay Street – Electronic CAD, Yes

$3.020.00

Delivery Format

One Study Copy PDF ($600.00)
Electronic PDF ($2.100.00)
Electronic CAD ($2.820.00)

Mirror/Flip the Plan

A PDF or CAD file purchase comes with a construction license to build a single house. For multi-use construction license click here

Click Here for copyright information

Delivery Format
Mirror/Flip the Plan

Help me select the proper format click here.

I would like to customize this house plan click here.

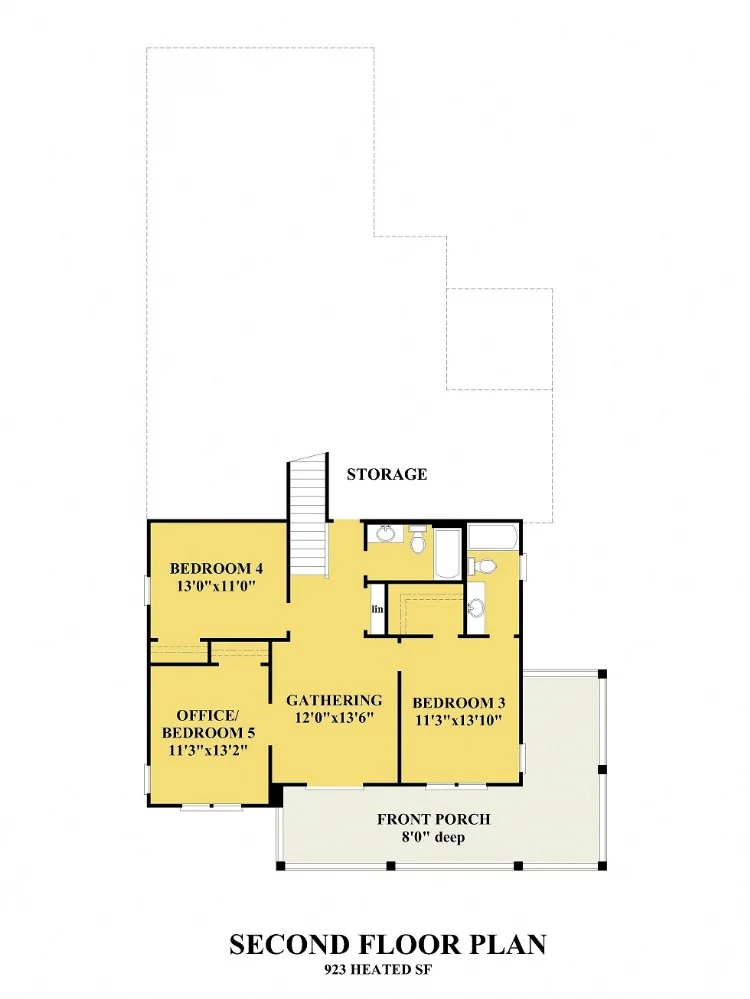

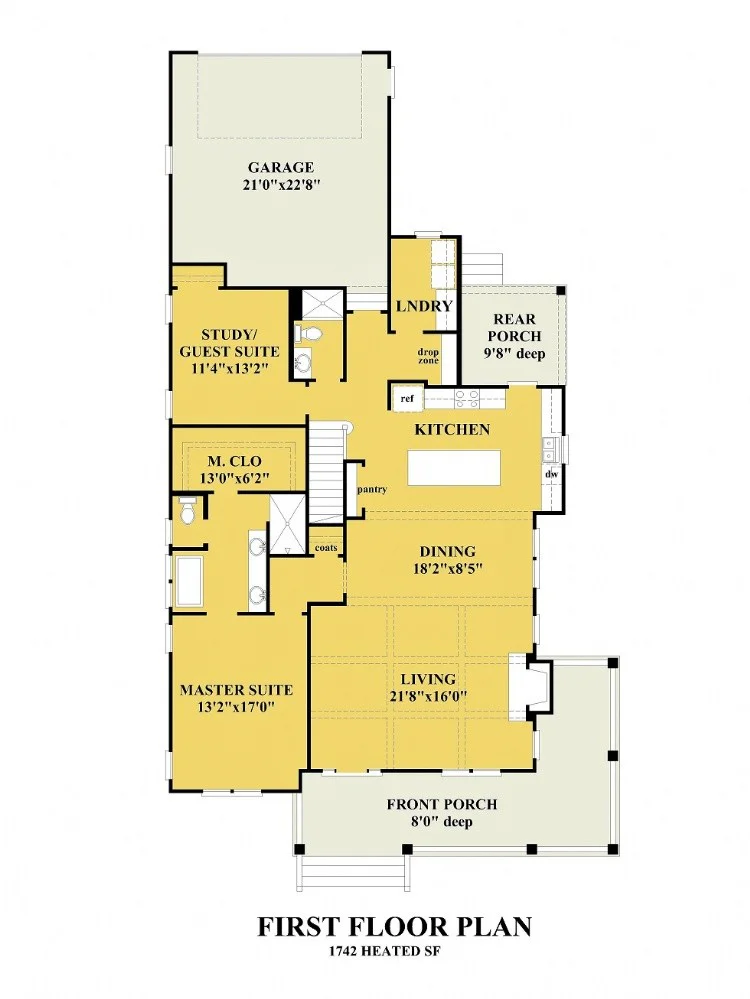

House Plan Specifications

SQ FT	2665
Foot Print	43'-10" x 78'-6"
Stories	2
Bedrooms	5
Bathrooms	4
First Floor Ceiling Height	10'
Second Floor Ceiling Height	9'
House Width	43' 10"
House Depth	78' 6"
Height	N/A
Foundation	Slab
Garage	Rear Load/Ally Accesss

Exterior Wall Thickness	2×4
Master Suite on main floor	YES
His & Hers Closets	NO
Walk In Pantry	NO
Office/Study	YES
Elevator	NO
FROG/Bonus Room	NO
Reverse Floor Plan	NO
Butler's Pantry	NO
Media Rooms	NO
Exercise Room	NO
Wet Bar	NO
